ATOS Hydraulic Vane Pump PFE & PFED Cartridge Kits

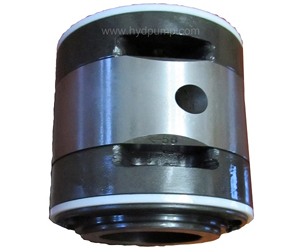

Hydraulic Vane Pump ATOS Cartridge
ATOS Single vane pump: PFE-21 PFE-31 PFE-41 PFE-51 PFE-61 PFE-22 PFE-32 PFE-42 PFE-52
ATOS Double vane pump: ATOS PFED32, ATOS PFED42, ATOS PFED43, ATOS PFED53, ATOS PFED54

A4VSO piston pump Rexroth A4VSO pump

PFE -

31

- 036/

1

D

T



Fixed displ. pump

Series

Nominal displacement
(cm3/rev)

Drive shaft

Direction of rotation

Port orientation

Synthetic fluids

ATOS
PFE series
single vane pump



   21

5, 6, 8, 10, 12, 16

1=standard
2=long version
3=for high torque applications
5=splinded shaft for any position
6*= splinded shaft for first position
7*= splinded shaft for multiple pump

D= clockwise
(standard )
S=
anti-clockwise

T=standard
U, V,
W= on request

Blank= water- glycol

PE= phosphate ester

   31

16, 22, 28, 36, 44

   41

29, 37, 45, 56, 70, 85

   51

90, 110, 129, 150

   61

160, 180, 200, 224, 250

   22

8, 10, 12

   32

22, 28, 36

   42

45, 56, 70

   52

90, 110, 129

ATOS PFE single vane pump, 2 and 3 cartridge design with integral hydraulic balancing 4 for high pressure operation and long service life with low noise level.
Suitable for hydraulic oils according to DIN 51524…535 OR synthetic fluids have similar lubricating characteristics.
These pumps are available as single, multiple or with through-shaft configuration. Mounting according to SAE J744 standard. Easy installation as inlet and outlet ports can be assembled in any of four relative positions. Easy maintains as the pumping cartridge can be replaced in a few minutes.
Wide variety of displacements up to 150 cm3/rev. Maximum pressure 210 bar (21MPa)

ATOS PFED double vane pump 2, 3 composed by two cartridges of pumps type PFE assembled in a main body having one inlet port 5 and two outlet ports.
ATOS PFED43 is composed by one cartridge of PFE-41 and one cartridge of PFE-31. ATOS PFED54 is composed by one cartridge of PFE-51 and one cartridge of PFE-41.
Suitable for hydraulic oils according to DIN 51524...535 or synthetic fluids have similar lubricating characteristics.

ATOS vane pump can be assembled, as second element, with PFE-4 and PFE-5 to obtain triple pumps. Mounting according to SAE and ISO 3019 standards.
Easy installation as inlet and outlet ports can be assembled in any of four relative positions.
Easy maintenance as pumping cartridge can be replaced in a few minutes.
Wide variety of displacements: from 29+16 up to 150+85 cm3/rev. Max pressure up to 210 bar.



ATOS single vane pump

ATOS single vane pump

Displacement
cc/rev

Maximum
pressure

Speed
rpm

210 bar
L/min    kW

Weight
KG

Oil ports

Inlet port

Outlet port

ATOS PFE21005

5



210 bar



900-3000




4.8    3.5



6





3/4”





1/2”



ATOS PFE21006

6.3

5.8     4

ATOS PFE21008

8

7.8    5.5

ATOS PFE21010

10

9.7    6.5

ATOS PFE21012

12.5

12.2    8

ATOS PFE21016

21.6

15.6   10

ATOS PFE31016

16.5


800-2500



16     8.3



9



1 1/4”



3/4”

ATOS PFE31022

21.6

23    10.8

ATOS PFE31028

28.1

33     14

ATOS PFE31036

35.6

43    17.8

ATOS PFE31044

43.7



800-2500




55     22





14







1 1/2”







1”



ATOS PFE41029

29.3

34    14.7

ATOS PFE41037

36.6

45    18.3

ATOS PFE41045

45

57    22.6

ATOS PFE41056

55.8

72     28

ATOS PFE41070

69.9

91     35

ATOS PFE41085

85.3

800-2000

114    43

ATOS PFE51090

90


800-2200


114    45



25.5





2”





1 1/4”



ATOS PFE51110

109.6

141    55

ATOS PFE51129

129.2

168    65

ATOS PFE51150

150.2

800-1800

197    75



ATOS double vane pump

ATOS double vane pump

7 bar

70 bar

140 bar

210 bar

Speed range min/max rpm

1°flow l/min Kw

2°flow l/min Kw

1°flow l/min Kw

2°flow l/min Kw

1°flow l/min Kw

2°flow l/min Kw

1°flow l/min Kw

2°flow l/min Kw

ATOS PFED43

ATOS PFED43 029/016

41 0,8

23 0,5

39 5,5

21 3

37 10

19 5

34 14

16 6,5


800-2500


ATOS PFED43 029/022

41 0,8

30 0,6

39 5,5

28 4

37 10

26 7

34 14

23 10

ATOS PFED43 029/028

41 0,8

40 0,8

39 5,5

38 5,5

37 10

36 10

34 14

33 14

ATOS PFED43 037/016

52 1

23 0,5

50 7

21 3

48 12,5

19 5

45 18

16 6,5

ATOS PFED43 037/022

52 1

30 0,6

50 7

28 4

48 12,5

26 7

45 18

23 10

ATOS PFED43 037/028

52 1

40 0,8

50 7

38 5,5

48 12,5

36 10

45 18

33 14

ATOS PFED43 037/036

52 1

51 1

50 7

49 7

48 12,5

46 12,5

45 18

43 18

ATOS PFED43 045/016

64 1,3

23 0,5

62 8,5

21 3

60 16

19 5

57 24

16 6,5

ATOS PFED43 045/022

64 1,3

30 0,6

62 8,5

28 4

60 16

26 7

57 24

23 10

ATOS PFED43 045/028

64 1,3

40 0,8

62 8,5

38 5,5

60 16

36 10

57 24

33 14

ATOS PFED43 045/036

64 1,3

51 1

62 8,5

49 7

60 16

46 12,5

57 24

43 18

ATOS PFED43 045/044

64 1,3

63 1,3

62 8,5

61 8

60 16

58 15,5

57 24

55 23

ATOS PFED43 056/016

80 1,6

23 0,5

78 11

21 3

75 21

19 5

72 30

16 6,5

ATOS PFED43 056/022

80 1,6

30 0,6

78 11

28 4

75 21

26 7

72 30

23 10

ATOS PFED43 056/028

80 1,6

40 0,8

78 11

38 5,5

75 21

36 10

72 30

33 14

ATOS PFED43 056/036

80 1,6

51 1

78 11

49 7

75 21

46 12,5

72 30

43 18

ATOS PFED43 056/044

80 1,7

63 1,3

78 11

61 8

75 21

58 15,5

72 30

55 23

ATOS PFED43 070/016

101 2

23 0,5

98 13,5

21 3

95 26

19 5

91 37

16 6,5

ATOS PFED43 070/022

101 2

30 0,6

98 13,5

28 4

95 26

26 7

91 37

25 10

ATOS PFED43 070/028

101 2

40 0,8

98 13,5

38 5,5

95 26

36 10

91 37

33 14

ATOS PFED43 070/036

101 2

51 1

98 13,5

49 7

95 26

46 12,5

91 37

43 18

ATOS PFED43 070/044

101 2

63 1,3

98 13,5

61 8

95 26

58 15,5

91 37

55 23

ATOS PFED43 085/016

124 2,4

23 0,5

121 16

21 3

118 32

19 5

114 46

16 6,5



800-2000



ATOS PFED43 085/022

124 2,4

30 1,6

121 16

28 4

118 32

26 7

114 46

23 10

ATOS PFED43 085/028

124 2,4

40 0,8

121 16

38 5,5

118 32

36 10

114 46

33 14

ATOS PFED43 085/036

124 2,4

51 1

121 16

49 7

118 32

46 12,5

114 46

43 18

ATOS PFED43 085/044

124 2,4

63 1,3

121 16

61 8

118 32

58 15,5

114 46

55 23

ATOS PFED54



















ATOS PFED54 090/029

128 2,7

41 0,8

124 17

39 5,5

119 33

37 10

114 48

34 14



700-2200



ATOS PFED54 090/037

128 2,7

52 1

124 17

50 7

119 33

48 12,5

114 48

45 18

ATOS PFED54 090/045

128 2,7

64 1,3

124 17

62 8,5

119 33

60 16

114 48

57 24

ATOS PFED54 090/056

128 2,7

80 1,6

124 17

78 11

119 33

75 21

114 48

72 30

ATOS PFED54 090/070

128 2,7

101 2

124 17

98 13,5

119 33

95 26

114 48

91 37

ATOS PFED54 090/085

128 2,7

124 2,4

124 17

121 16

119 33

118 32

114 48

114 46

700-2000

ATOS PFED54 110/029

157 3,2

41 0,8

152 21

39 5,5

147 40

37 10

141 58

34 14



700-2200



ATOS PFED54 110/037

157 3,2

52 1

152 21

50 7

147 40

48 12,5

141 58

45 18

ATOS PFED54 110/045

157 3,2

64 1,3

152 21

62 8,5

147 40

60 16

141 58

57 24

ATOS PFED54 110/056

157 3,2

80 1,6

152 21

78 11

147 40

75 21

141 58

72 30

ATOS PFED54 110/070

157 3,2

101 2

152 21

98 13,5

147 40

95 26

141 58

91 37

ATOS PFED54 110/085

157 3,2

124 2,4

152 21

121 16

147 40

118 32

141 58

114 46

700-2000

ATOS PFED54 129/029

186 3,7

41 0,8

180 25

39 5,5

174 47

37 10

168 69

34 14



700-2200



ATOS PFED54 129/037

186 3,7

52 1

180 25

50 7

174 47

48 12,5

168 69

45 18

ATOS PFED54 129/045

186 3,7

64 1,3

180 25

62 8,5

174 47

60 16

168 69

57 24

ATOS PFED54 129/056

186 3,7

80 1,6

180 25

78 11

174 47

75 21

168 69

72 30

ATOS PFED54 129/070

186 3,7

101 2

180 25

98 13,5

174 47

95 26

168 69

91 37

ATOS PFED54 129/085

186 3,7

124 2,4

180 25

121 16

174 47

118 32

168 69

114 46

700-2000

ATOS PFED54 150/029

215 4,2

41 0,8

211 29

39 5,5

204 55

37 10

197 80

34 14



700-1800




ATOS PFED54 150/037

215 4,2

52 1

211 29

50 7

204 55

48 12,5

197 80

45 18

ATOS PFED54 150/045

215 4,2

64 1,3

211 29

62 8,5

204 55

60 16

197 80

57 24

ATOS PFED54 150/056

215 4,2

80 1,6

211 29

78 11

204 55

75 21

197 80

72 30

ATOS PFED54 150/070

215 4,2

101 2

211 29

98 13,5

204 55

95 26

197 80

91 37

ATOS PFED54 150/085

215 4,2

124 2,4

211 29

121 16

204 55

118 32

197 80

114 46
