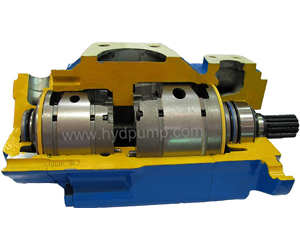

EATON Vickers V, VQ VQH Hydraulic Vane Pump Cartridge Kits

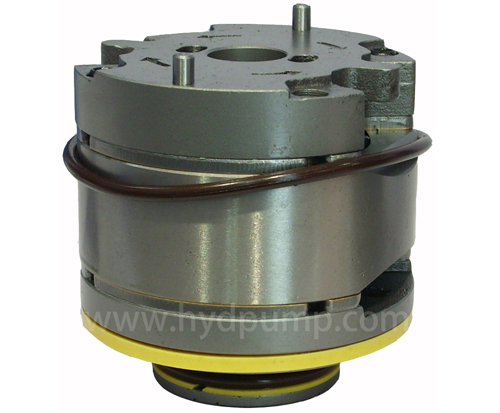

Hydraulic Kits V VQ & VQH Vickers Vane Pump Cartridge
Hydraulic Vickers V cartridge 20VQ 25VQ 30VQ 35VQ 45VQ
20VQ series: 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 14
25VQ series: 10, 12, 14, 17, 19, 21
35VQ series: 21, 25, 30, 35, 38
45VQ series: 42, 45, 50, 57, 60, 66, 75

A4VSO piston pump Rexroth A4VSO pump

We have a wide selection of cartridge kit for hydraulic systems including full Vickers hydraulic pumps. We offer replacement cartridge pumps for 20VQ, 25VQ, 30VQ, 35VQ and 45VQ hydraulic vane pump. Our cartridge kits are designed using the same exact specifications as the Vickers brand cartridge kits to ensure a perfect fit every time at a fraction of the cost of brand-name parts. You’ll save time and money when you purchase your replacement hydraulic cartridge kit from our factory.

Technical Data of Vickers vane pump cartridge
Table of values (theoretical values, without efficiency and tolerances; values rounded)

Vickers cartridge

Vickers code

20VQ

Vickers 20VQ cartridge     6 lbs

20VQ5

20VQ8

20VQ11

20VQ12

20VQ14

20VQ5 g/m

417053

Displacement           Cu.in./rev.
(cc/ rev.)

1.1
(18)

1.7
(27)

2.2
(36)

2.4
(39)

2.8
(46)

20VQ5 g/m - Viton

421588

Max. Pressure     Continuous psi
                            (Bar)

3000 (206)

3000 (206)

3000 (206)

2300 (159)

2000 (138)

20VQ8 g/m

417054

20VQ8 g/m - Viton

421589

Min. Speed        Below 1000 psi
                      Above 1000 psi

600
1000

600
1000

600
1000

600
1000

600
1000

20VQ9 g/m

423096

20VQ9 g/m - Viton

423097

Max. Speed,                RPM

2700

2700

2700

2700

2700

20VQ11 g/m

416427

Flow at Max.                G/M
Speed & Pressure     (Liters/ Min)

11
(43)

17
(64)

23
(86)

23
(86)

24
(90)

20VQ11 g/m - Viton

423097

20VQ12 g/m

416428

Input HP at Max.             HP
Speed & Pressure           (KW)

25
(18)

32
(24)

49
(37)

32
(24)

36
(27)

20VQ12 g/m - Viton

421590

20VQ14 g/m

416429













20VQ14 g/m - Viton

421592













Vickers cartridge

Vickers code

25VQ

Vickers 25VQ cartridge  8 lbs

25VQ12

25VQ14

25VQ17

25VQ19

25VQ21

25VQ12 g/m

416439

Displacement           Cu.in./rev.
(cc/ rev.)

2.4
(40)

2.8
(45)

3.4
(55)

3.7
(60)

4.1
(68)

25VQ12 g/m - Viton

421570

Max. Pressure      Continuous psi
                            (Bar)

3000 (206)

3000 (206)

3000 (206)

2300 (159)

2000 (138)

25VQ14 g/m

416440

25VQ14 g/m - Viton

421571

Min. Speed         Below 1000 psi
                       Above 1000 psi

600
1000

600
1000

600
1000

600
1000

600
1000

25VQ17 g/m

416441

25VQ17 g/m - Viton

421572

Max. Speed,                RPM

2700

2700

2500

2500

2500

25VQ19 g/m

421232

Flow at Max.                G/M
Speed & Pressure      (Liters/ Min)

25
(96)

28
(108)

32
(122)

36
(137)

40
(153)

25VQ19 g/m - Viton

421573

25VQ21 g/m

416442

Input HP at Max.             HP
Speed & Pressure           (KW)

25
(40)

32
(50)

49
(51)

32
(56)

36
(63)

25VQ21 g/m - Viton

421574

Vickers 30VQ cartridge


Vickers cartridge

Vickers code

35VQ21g/m

413420

35VQ25 g/m

413421

35VQ25 g/m - Viton

421583



Vickers cartridge

Vickers code

35VQ

Vickers 35VQ cartridge      4 lbs

35VQ21

35VQ25

35VQ30

35VQ35

35VQ38

35VQ21g/m

413420

Displacement           Cu.in./rev.
(cc/ rev.)

4.2
(69)

5.0
(82)

6.0
(98)

6.9
(113)

7.4 (122)

35VQ25 g/m

413421

Max. Pressure       Continuous psi
                             (Bar)

3000 (206)

3000 (206)

3000 (206)

2300 (206)

2000 (206)

35VQ25 g/m - Viton

421583

35VQ30 g/m

413422

Min. Speed         Below 1000 psi
                       Above 1000 psi

600
1000

600
1000

600
1000

600
1000

600
1000

35VQ30 g/m - Viton

421584

35VQ35 g/m

413418

Max. Speed,                RPM

2500

2500

2500

2400

2400

35VQ35g/m - Viton

421585

Flow at Max.         G/M
Speed & Pressure      (Liters/ Min)

27
(101)

47
(178)

57
(215)

64
(242)

69 (263)

35VQ38 g/m

413419

35VQ38 g/m - Viton

421586

Input HP at Max.              HP
Speed & Pressure            (KW)

92
(68)

98
(73)

122
(91)

129
(96)

142 (106)

35VQ21 g/m - Viton

-



Vickers cartridge

Vickers code

45VQ

Vickers 45VQ cartridge     22 lbs

45VQ42

45VQ47

45VQ50

45VQ57

45VQ60

45VQ42 g/m

416435

Displacement           Cu.in./rev.
(cc/ rev.)

8.5
(69)

9.4
(82)

9.9
(98)

11.2
(113)

11.8 (122)

45VQ42 g/m - Viton

419511

Max. Pressure      Continuous psi
                             (Bar)

2500 (172)

2500 (172)

2500 (172)

2500 (172)

2500 (172)

45VQ47 g/m

421234

45VQ47 g/m - Viton

421954

Min. Speed        Below 1000 psi
                      Above 1000 psi

600
1000

600
1000

600
1000

600
1000

600
1000

45VQ50 g/m

416436

45VQ50 g/m - Viton

419510

Max. Speed,                RPM

2200

2200

2200

2200

2200

45VQ57 g/m

421233

Flow at Max.                G/M
Speed & Pressure     (Liters/ Min)

69
(263)

77
(294)

82
(313)

96
(364)

99 (375)

45VQ57 g/m - Viton

421955

45VQ60 g/m

416437

Input HP at Max.             HP
Speed & Pressure           (KW)

126
(94)

137
(102)

146
(109)

158
(118)

168 (125)

45VQ60 g/m - Viton

419509



Hydraulic Vickers V cartridge 20V, 25V, 35V, 45V
20V series: 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 14
25V series: 10, 12, 14, 17, 19, 21
35V series: 21, 25, 30, 35, 38
45V series: 42, 45, 50, 57, 60, 66, 75
Technical Data of Vickers vane pump cartridge
Table of values (theoretical values, without efficiency and tolerances; values rounded)

Vickers cartridge

Vickers code

20V

Vickers 20V cartridge     6 lbs

20V5

20V8

20V11

20V12

20V14

20V5 g/m

102507

Displacement           Cu.in./rev.
(cc/ rev.)

1.0
(16)

1.5
(25)

2.1
(35)

2.3
(38)

2.7
(44)

20V5 g/m - Viton

102507

Max. Pressure     Continuous psi
                            (Bar)

3000 (206)

3000 (206)

3000 (206)

2500 (172)

2200 (138)

20V8 g/m

102508

20V8 g/m - Viton

102508

Min. Speed        Below 1000 psi
                      Above 1000 psi

600
1000

600
1000

600
1000

600
1000

600
1000

20V11 g/m

102509

20V11 g/m - Viton

102509

Max. Speed,                RPM

1800

1800

1800

1800

1800

20V12 g/m

102510

Flow at Max.                G/M
Speed & Pressure     (Liters/ Min)

7
(27)

11
(43)

13
(50)

16
(59)

20
(74)

20V12 g/m - Viton

102510

20V14 g/m

102511

Input HP at Max.             HP
Speed & Pressure           (KW)

13
(17)

21
(28)

29
(39)

26
(35)

25
(34)

20V14 g/m - Viton

102511



Vickers cartridge

Vickers code

25V

Vickers 25V cartridge  8 lbs

25V12

25V14

25V17

25V19

25V21

25V12 g/m

102532

Displacement           Cu.in./rev.
(cc/ rev.)

2.3
(38)

2.7
(44)

3.3
(54)

4.0
(66)

2.3
(38)

25V12 g/m - Viton

102532

Max. Pressure      Continuous psi
                            (Bar)

2500 (206)

2500 (206)

2500 (206)

2500 (159)

2500 (206)

25V14 g/m

102533

25V14 g/m - Viton

102533



Min. Speed         Below 1000 psi
                       Above 1000 psi

600
1000

600
1000

600
1000

600
1000

600
1000

25V17 g/m

102534

25V17 g/m - Viton

102534

Max. Speed,                RPM

1800

1800

1800

1800

1800

25V21 g/m

102535

Flow at Max.                G/M
Speed & Pressure      (Liters/ Min)

14
(54)

17
(64)

23
(87)

27
(101)

14
(54)

25V21 g/m - Viton

102535



Input HP at Max.              HP
Speed & Pressure           (KW)

26
(35)

31
(42)

37
(50)

46
(62)

26
(35)



Vickers cartridge

Vickers code

35V

Vickers 35V cartridge      4 lbs

35V25

35V30

35V35

35V38

35V25 g/m

102552

Displacement           Cu.in./rev.
(cc/ rev.)

4.8
(79)

5.8
(95)

6.7
(110)

7.3
(120)

35V25 g/m – Viton

102552

Max. Pressure       Continuous psi
                             (Bar)

2500
(172)

2500
(172)

2500
(172)

2500
(172)

35V30 g/m

102553

35V30 g/m – Viton

102553

Min. Speed         Below 1000 psi
                       Above 1000 psi

600
1000

600
1000

600
1000

600
1000

35V35 g/m

102554

35V35 g/m – Viton

102554

Max. Speed,                RPM

1800

1800

1800

1800

35V38 g/m

102555

Flow at Max.                G/M
Speed & Pressure      (Liters/ Min)

32
(27)

40
(43)

48
(50)

51
(59)

35V38 g/m – Viton

102555



Input HP at Max.              HP
Speed & Pressure            (KW)

55

66

77

83



Vickers cartridge

Vickers code

45V

Vickers 45V cartridge     22 lbs

45V42



45V50



45V60

45V42 g/m

102572

Displacement           Cu.in./rev.
(cc/ rev.)

8.1
(132)



9.6
(158)



11.6
(89)

45V42 g/m – Viton

102576

Max. Pressure      Continuous psi
                             (Bar)

2500
(172)



2500
(172)



2500
(172)

45V50 g/m

102574

45V50 g/m – Viton

102577

Min. Speed        Below 1000 psi
                      Above 1000 psi

600
1000



600
1000



600
1000

45V60 g/m

102575

45V60 g/m – Viton

102578

Max. Speed                RPM

1800



1800



1800



Flow at Max.                G/M
Speed & Pressure      (Liters/ Min)

56
(211)



67
(252)



83
(310)

Input HP at Max.              HP
Speed & Pressure            (KW)

92



109



131
