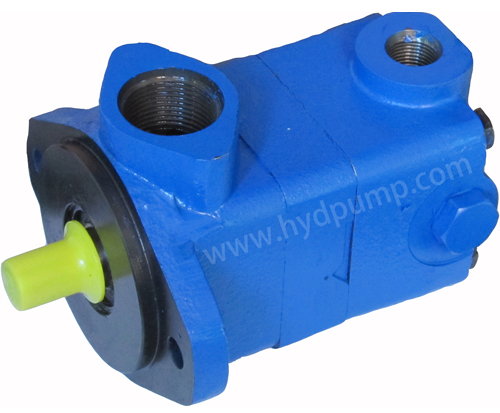

EATON Vickers V10 & V20 Power Steering Vane Pump

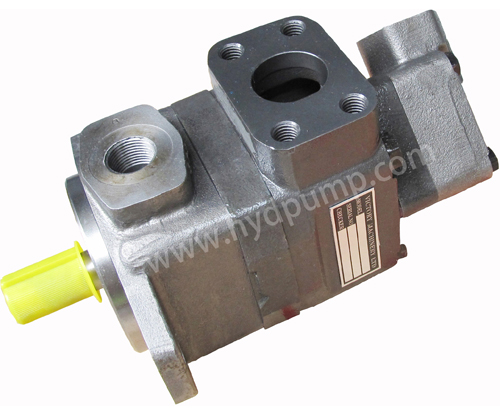

Fixed Displacement Eaton Vickers Vane Pump
Vickers vane pump V10 V20 V2010 2020

A4VSO piston pump Rexroth A4VSO pump

Features
• EATON Vickers 10 and V20 series are fixed displacement and balanced type vane pumps. With compact sizes, they are available in single pumps and double pumps for both industrial and mobile application.
• The vane design with self compensation for wear and clearances makes volumetric efficiency of pump nearly constant over the service life. (The vanes always adjust its orbit to contact with the cam ring, even though wear occurs between the cam ring and vane tips)
• The vane pump is not damaged at low speed and high pressure operation because pumping action does not start until the speed is high enough for the vane to throw out. With hydraulically balanced design, the bearing is externally loaded only. Therefore, the pump requires minimized maintenance with long service life.
• The inlet or outlet ports can be rotated through increments of 90o in relation to each other, providing application flexibility and easy installation.
• With optional flow control and priority valve covers, the pump can be used in more applications. The flow control cover can limit the flow to the primary circuit at the required flow rate, while diverts remaining flow to the tank. The priority valve cover maintains a constant flow to the primary circuit, while diverts remaining flow to the secondary circuit. Each cover comes with a relief valve to limits the maximum pressure of the primary circuit.
• Interchangeable with original Vickers pumps of the same model.

Handling
• For maximum service life, the pump should be protected from contamination. Filtering fluid before filling and during operation to maintain or exceed ISO cleanliness code 17/14. Replaceable elements should be changed as filter supplier instructions.
• The drive shaft must align with the power source shaft. Avoiding shaft end thrust and applications that impose radial loading.
• The start-up procedures should be as follows:
- Check the rotation of power source to match the rotation of pump.
- Check inlet and outlet ports to assure all connections are properly installed and check all mounting bolts and flanges to assure all are tight and properly aligned.
- Fill pump with fluid through the outlet port if the pump is mounted above the fluid level. The spline shaft models also need to be lubricated with an anti-fretting grease or similar lubricant.
- Place all controls in the neutral position so the pump is unloaded during initial start-up.
- Prime the pump within a few second when the pump is started.
- Bleed off entrapped air from outlet circuit until a steady output flow is observed.
Technical Data of Vickers pump V10, V20, V2010, V2020
Table of values (theoretical values, without efficiency and tolerances; values rounded)
Single Vickers vane pump:


Vickers vane pump

Delivery at 1200 r/min & 7 bar (100 psi)US gpm

Geometric
Displacement
cm 3 /r (in 3 /r)

Delivery
at 1500 r/min &
7 bar (100 psi)
L/min (USgpm)

Maximum
Pressure

bar (psi)

Maximum
Speed

rpm

Minimum
Speed

rpm

Weight

kg (lb)



V10
V10F V10P

1
2
3
4
5
6
7

3.3 (0.20)
6.6 (0.40)
9.8 (0.60)
13.1 (0.80)
16.4 (1.00)
19.5 (1.19)
22.8 (1.39)

4.70 (1.25)
9.40 (2.50)
14.20 (3.75)
18.90 (5.00)
23.60 (6.25)
28.40 (7.50)
33.10 (8.75)

172 (2500)
172 (2500)
172 (2500)
172 (2500)
172 (2500)
152 (2200)
138 (2000)

4800
4500
4000
3400
3200
3000
2800

650
650
650
650
650
650
650





4.5 - 6.8 (10 - 15)



V20
V20F V20P

6
7
8
9
11
12
13

19.5 (1.19)
22.8 (1.39)
26.5 (1.62)
29.7 (1.81)
36.4 (2.22)
39.0 (2.38)
42.4 (2.59)

28.39 (7.50)
33.11 (8.75)
37.85 (10.00)
42.57 (11.25)
52.04 (13.75)
56.77 (15.00)
61.50 (16.25)

172 (2500)
172 (2500)
172 (2500)
172 (2500)
172 (2500)
152 (2200)
152 (2200)

3400
3000
2800
2800
2500
2400
2400

650
650
650
650
650
650
650



7.3 - 8.2 (16 - 18)

Double Vickers vane pump:


Vickers vane pump

Delivery at 1200 r/min & 7 bar (100 psi) US gpm

Geometric
Displacement
cm 3 /r (in 3 /r)

Delivery
at 1500 r/min &
7 bar (100 psi)
L/min (USgpm)

Maximum
Pressure
bar (psi)

Maximum
Speed
rpm

Minimum
Speed
rpm

Weight

kg (lb)







V2010



Shaft End

7
8
9
11
12
13

22.8 (1.39)
26.5 (1.62)
29.7 (1.81)
36.4 (2.22)
39.0 (2.38)
42.4 (2.59)

33.11 (8.75)
37.85 (10.00)
42.57 (11.25)
52.04 (13.75)
56.77 (15.00)
61.50 (16.25)

172 (2500)
172 (2500)
172 (2500)
172 (2500)
152 (2200)
152 (2200)

3000
2800
2800
2500
2400
2400







13.6 (30)





Cover End

1
2
3
4
5
6
7

3.3 (0.20)
6.6 (0.40)
9.8 (0.60)
13.1 (0.80)
16.4 (1.00)
19.5 (1.19)
22.8 (1.39)

4.70 (1.25)
9.40 (2.50)
14.20 (3.75)
18.90 (5.00)
23.60 (6.25)
28.40 (7.50)
33.10 (8.75)

172 (2500)
172 (2500)
172 (2500)
172 (2500)
172 (2500)
152 (2200)
138 (2000)

3000
3000
3000
3000
3000
3000
2800







V2020



Shaft End

7
8
9
11
12
13

22.8 (1.39)
26.5 (1.62)
29.7 (1.81)
36.4 (2.22)
39.0 (2.38)
42.4 (2.59)

33.11 (8.75)
37.85 (10.00)
42.57 (11.25)
52.04 (13.75)
56.77 (15.00)
61.50 (16.25)

172 (2500)
172 (2500)
172 (2500)
172 (2500)
152 (2200)
152 (2200)

3000
2800
2800
2500
2400
2400







15.9 (35)



Cover End

6
7
8
9
11

19.5 (1.19)
22.8 (1.39)
26.5 (1.62)
29.7 (1.81)
36.4 (2.22)

28.39 (7.50)
33.11 (8.75)
37.85 (10.00)
42.57 (11.25)
52.04 (13.75)



172 (2500)

3000
3000
2800
2800
2500

High Performance
Low vane tip/ring loading allows high pressure operation. High speeds are possible because the inlet flow paths are designed to give uniform oil acceleration, and thus better filling characteristics, particularly at low inlet pressures. Internal inlet and outlet pressure chambers are diametrically opposed. As a result, pressure-induced radial loads are balanced, and bearings have to carry the external load only.
Extended Product Life
The superior design of these pumps makes them last longer. They’ve proven they’ll hold up in rugged applications.
Low Cost
Vickers’ efficient design produces extra horsepower per dollar of pump investment, providing industry with low pump cost per horsepower capacity.
Versatility
High flow, pressure and speed capabilities enable these pumps to meet the hydraulic circuit needs of many types of modern machinery.
