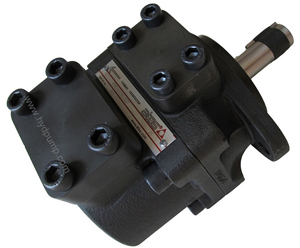

ATOS PFE Single Hydraulic Vane Pump


Hydraulic ATOS PFE vane pump
ATOS Single vane pump: PFE21 PFE31 PFE41 PFE51 PFE61 PFE22 PFE32 PFE42 PFE52

A4VSO piston pump Rexroth A4VSO pump

Order code:


PFE -

31

- 036/

1

D

T



Fixed displ. pump

Series

Nominal displacement
(cm3/rev)

Drive shaft

Direction of rotation

Port orientation

Synthetic fluids

ATOS
PFE series
single vane pump



   21

5, 6, 8, 10, 12, 16

1=standard
2=long version
3=for high
torque applications
5=splinded shaft for any
position
6*= splinded shaft for first position
7*= splinded shaft for multiple pump

D= clockwise
(standard )
S=
anti-clockwise

T=standard
U, V,
W= on request

Blank= water- glycol

PE= phosphate ester

   31

16, 22, 28, 36, 44

   41

29, 37, 45, 56, 70, 85

   51

90, 110, 129, 150

   61

160, 180, 200, 224, 250

   22

8, 10, 12

   32

22, 28, 36

   42

45, 56, 70

   52

90, 110, 129

PFE are fixed displacement-twelve-vane pump, 2 and 3 cartridge designs with integral hydraulic balancing 4 for high pressure operation and long service life with low noise level.
Suitable for hydraulic oils according to DIN 51524…535 OR synthetic fluids have similar lubricating characteristics.
These pumps are available as single, multiple or with through-shaft configuration. Mounting according to SAE J744 standard. Easy installation as inlet and outlet ports can be assembled in any of four relative positions. Easy maintains as the pumping cartridge can be replaced in a few minutes.
Wide variety of displacements up to 150 cm3/rev. Maximum pressure 210 bar (21MPa)

These pumps can be assembled, as second element, with PFE4 and PFE5 to obtain triple pumps, see tab A190.
Mounting according to SAE and ISO 3019 standards. Easy installation as inlet and outlet ports can be assembled in any of four relative positions. Easy maintenance as pumping cartridge can be replaced in a few minutes.
Wide variety of displacements: from 29+16 up to 150+85 cm3/rev. Max pressure up to 210 bar.

Technical Data of ATOS PFE vane pump
Table of values (theoretical values, without efficiency and tolerances; values rounded)

Vane pump

Displacement
cc/rev

Maximum
pressure

Speed range
rpm

210 bar
L/min kW

Weight
KG

Oil ports

Inlet port

Outlet port

PFE21005

5









210 bar



900-3000

4.8    3.5



6



3/4”



1/2”

PFE21006

6.3

5.8     4

PFE21008

8

7.8    5.5

PFE21010

10

9.7    6.5

PFE21012

12.5

12.2   8

PFE21016

21.6

15.6   10

PFE31016

16.5



800-2500

16     8.3



9



1 1/4”



3/4”

PFE31022

21.6

23    10.8

PFE31028

28.1

33     14

PFE31036

35.6

43    17.8

PFE31044

43.7



800-2500

55     22

PFE41029

29.3

34    14.7



14



1 1/2”



1”

PFE41037

36.6

45    18.3

PFE41045

45

57    22.6

PFE41056

55.8

72     28

PFE41070

69.9

91     35

PFE41085

85.3

800-2000

114    43

PFE51090

90



800-2200

114    45



25.5



2”



1 1/4”

PFE51110

109.6

141    55

PFE51129

129.2

168    65

PFE51150

150.2

800-1800

197    75

Vane pump

Displacement
cc/rev

Maximum
pressure

Speed range
rpm

7 bar
L/min  kW

140bar
L/min  kW

@ max. pressure
L/min   kW

PFE32022

21.6



300 bar



1200-2500

30      0.6

26      7

20       16

PFE32028

28.1

40      0.8

36      10

30       20

PFE32036

35.6

51      1

 46      1.25

40       26

PFE42045

45

280 bar



1000-2200

64      1.3

60      16

56       31

PFE42056

55.8

80      1.6

75      21

70       40

PFE42070

69.9

250 bar

101      2

95      26

90       42

PFE42085

85.3

210 bar

800-2000

124     2.4

118     32

114      43

PFE52090

90



250 bar



1000-2000

128     2.7

119     33

111      54

PFE52110

109.6

157     3.2

147     40

138      66

PFE52129

129.2

186     3.7

174     47

163      78

PFE52150

150.2

210 bar

800-1800

215     4.2

204     55

197      80
