Sauer Danfoss PV / SPV Axial Piston Hydraulic Pump

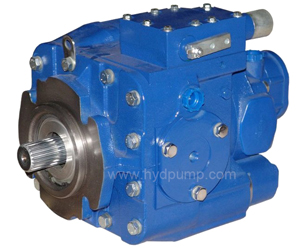

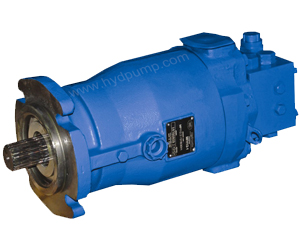

Axial Piston Sauer PV Pump
Hydraulic Sauer-Sundstrand axial piston pump PV20, PV21, PV22, PV23, PV24, PV25, PV26, PV27

A4VSO piston pump Rexroth A4VSO pump

Closed circuit
Series 20
Size: PV20, PV21, PV22, PV23, PV24, PV25, PV26, PV27
Nominal pressure 210 bars, Maximum pressure 350 bars.

The Sauer PV axial piston variable displacement pumps, Series 20, are of swash plate construction with variable flow capability suitable for hydrostatic transmissions with closed circuit. The flow rate is proportional to the pumps driven speed displacement, which, in turn, is determined by the swash plate angle. The latter is infinitely adjustable between zero and maximum displacement. Flow direction is reserved by titling the swash plate to the opposite side of the neutral or zero displacement position. These units and parts are fit, form and function replacements for Sauer-Sundstrand series 20 components.

– Suitable for a variety of applications
– Multiple displacements and options available
– 8 different frame sizes
– Engineered to provide a long service life and reliability
– Fixed displacement motor can be operated in either direction of rotation
– Multiple drive shaft options and control options
– Heavy duty bearings and shafts
– Replacement parts also available
– Direct replacements for Sauer-Sundstrand

Features of Sauer PV pump
The full-length shaft with a high efficient tapered roller bearing arrangement offers a high loading capacity for external radial forces. Additional pumps can be built on. The hydro-mechanical servo displacement control maintains the selected swash plate position and hence pump displacement. Upon release of the control handle, the swash plate automatically returns to the null position and the flow become zero. High case pressures can be archived without leakage even at the lowest temperature by using suitable shaft seals. The servo valve arrangement offers the facility to incorporate function regulators and remote control system. Axial piston units are designed for easy servicing, complete dismantling and reassembly can be carried out standard hand tools, and all components or sub-assemblies are replaceable.
Servo Displacement Control (Linear response)
Regular by control handle on the servo valve, the swash plate can be infinitely varied in both directions with the help of the servo system.
The pump displacement resulting from any control handle position can be established using figures
The angle of the control handle for stroke initiation and for the final position of the stroke can vary from unit to unit within the range of the tolerance band.
Reversing time
Time for the directional change of the flow from Qmax across 0 to Qmax depending on the size of the control orifice fitted in the supply port to the servo valve.The values given assume movement of the control handle directly from one end position to other.

Technical Data of Sauer PV Pump
Table of values (theoretical values, without efficiency and tolerances; values rounded)


Size

Dimension

Sauer-Sundstrand PV pump

PV20

PV21

PV22

PV23

PV24

PV25

PV26

PV27

Max. displacement

cm3

33,3

51,6

69,8

89,0

118,7

165,8

227,3

333,7

Max. flow

dm3 min-1

119,5

159,9

196,1

230,5

278,9

348,1

429,59

557,2

4

6

4

1

4

8

8

Charge pump

cm3

12,3

12,3

18,03

18,03

18,8

32,8

32,8

65,5

Maximum pressure

MPa

35

Nominal pressure

MPa

21

Max. pressure of control

MPa

3,5

Charge pressure

MPa

0,8 – 2,0

Max. pressure in case

MPa

0,25 continuous 0,5 intermittent

Max. speed

min-1

3590

3100

2810

2590

2350

2100

1890

1670

Min. speed

min-1

500

Nominal speed

min-1

1500

Kinematic viscosity range of working fluid
- starting
- operating
- optimum



Mm 2s-1



1000
12 – 600
25 - 35

Kind of working fluid



mineral oil

Operating temperature

oC

- 40 to + 50

Max. temperature of working fluid in tank

oC

80

Purity of working fluid

µm

10

Direction of shaft rotation



clockwise or counter clockwise

Max. swash plate angle

o

± 18

Dry weight

kg

45

55

63

78

124

164

212

270
