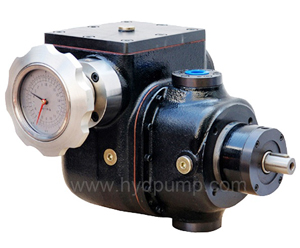

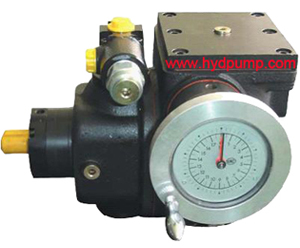

Rexroth A2VK Chemical Froth Axial Piston Metering Pump


Axial Piston Polyurethane Metering Brueninghaus Hydromatik Rexroth A2VK Pump

Open and closed circuits
Polyurethane metering pump A2VK12, A2VK28, A2VK55, A2VK107
Nominal pressure 250 bars, Maximum pressure 315 bars.

A4VSO piston pump Rexroth A4VSO pump

Features

– Chemical Froth Hydraulic Axial Piston Polyurethane Metering Pump
– High metering accuracy and reproducibility of the variable pumped volumes
– Robust manual adjustment via hand wheel with integral precision measuring scale
– Operating pressure up to 250 bar
– Low pulsation of the pumped medium
– Pump components are compatible with the pumped media (polyol, isocyanate) due to special pairings of materials and sealing elements
– Low-noise
– Excellent volumetric efficiency for high metering accuracy
– Double shaft seals with buffer fluid ports to guarantee safe operation (and protect the environment)
– With corrosion protection

Technical Data of Brueninghaus Hydromatik Rexroth A2VK Pump
Table of values (theoretical values, without efficiency and tolerances; values rounded)



Brueninghaus Hydromatik Rexroth A2VK Pump

A2VK12

A2VK28

A2VK55

A2VK107

Displacement       Vg max

cm3

11.6

28.1

54.8

107

Flow

qv max

n = 735  rpm

l/min

8.3

20

39.1

76.3

n = 970  rpm

l/min

10.9

26.4

51.6

100.7

n = 1450  rpm

l/min

16.3

39.5

77.1

150.5

n = 1800  rpm

l/min

20.3

49.1

95.7

186.8

Power          at ∆p = 250 bar

Pmax

n = 735  rpm

kW

3.4

8.3

16.3

31.8

n = 970  rpm

kW

4.5

11

21.5

41.9

n = 1450  rpm

kW

6.8

16.5

32.1

62.7

n = 1800  rpm

kW

8.4

20.4

39.9

77.8

Installation position
The pump must be completely filled with fluid. If installed with the shaft pointing upwards, the top leakage fluid port must be connected to the housing for both types of circuit to ensure that the housing is vented in the vicinity of the bearing.
Preferred installation position: drive shaft horizontal. The adjustment display in the hand wheel can only be guaranteed to work if the adjusting spindle is installed -30° to +30° from the horizontal.
Fluid
The pump and meter fluids for manufacturing polyurethane.
Leakage fluid
Max. Leakage fluid pressure PL max. 10 bars. In the closed circuit, pump ports A and B are separated from the housing space.
The leakage fluid must be removed via port T1 or T2 using a separate line. In the open circuit, the suction port S is connected to the housing space. There is no need for a line for the leakage fluid. Ports T1 and T2 are plugged. The filling pressure at port S acts on the shaft sealing ring via the housing space. The service life of the shaft sealing ring decreases as the pressure of the leakage fluid or the filling pressure at port S increases.
Operating temperature range
Optimum operating temperature range 10-50°C. Maximum operating temperature tmax.80°C
The permitted working temperature depends on the lubricity of the fluid. The maximum fluid temperature must not be exceeded even locally (e.g. no more than 5K over the leakage fluid temperature).
Control unit MA – Manual adjustment
Turning the hand wheel turns a self-locking threaded spindle which steplessly adjusts the pump’s swivel section, and thus the volumetric flow in the range from Vg 0 to Vg max.

Details model of Rexroth A2VK pump

R902000250    A2VK55MAGR1G0PE1

R909063496    A2VK28OVOR1G00P

R902070571    A2VK12OVGW4G00P-SO

R902000251    A2VK55MAGR1G0PE2-SO

R909064723    A2VK55OVOR1G00P

R902070940    A2VK28OVGW1G00P-SO

R902000252    A2VK55GEOR1G0PE2-SO

R909065157    A2VK28OVGR1G00P

R902070941    A2VK28OVOL1G00P-SO

R902000253    A2VK55GEOR1G0PE1-SO

R909070964    A2VK55OVGR1G00P

R902070943    A2VK55OVGL1G00P-SO2

R902004079    A2VK12MAOR4G1PE1-SO2

R909076531    A2VK28OVGR1G00P

R902073966    A2VK28MAGL1G0PE1-SO

R902004081    A2VK12MAOR4G1PE2-SO2

R909081581    A2VK107MA/GE

R902073985    A2VK12MAOL4G0PE1-SO2

R902004352    A2VK12MAGR4G1PE1-SO2

R909081600    A2VK55OVOR1G00P-SO

R902073999    A2VK107MAOL1G0PE1-SO

R902004353    A2VK28MAGR1G1PE1-SO2

R909081716    A2VK12OVOR4G00P-SO

R902078760    A2VK12MAGR4G1PE1-SO11

R902004354    A2VK28MAOR1G1PE1-SO2

R909081903    A2VK28OVGR1G00P-SO

R902080650    A2VK55OVOL1G00P-SO2

R902004355    A2VK55MAGR1G1PE1-SO2

R909081904    A2VK28OVOR1G00P-SO

R902080651    A2VK55MAOL1G0PE2-SO2

R902009694    A2VK28GEOR1G0PE2-SO7

R909081905    A2VK55OVGR1G00P-SO

R902080653    A2VK107OVOL1G00P

R902009895    A2VK28MAOR1G1PE2-SO2

R909081906    A2VK107OVGR1G00P

R902080654    A2VK107MAOL1G0PE2-SO2

R902014085    A2VK12GEOR4G1PE1-SO10

R909416620    A2VK28OVOR1G00P

R902080731    A2VK12MAOR4G1PE2-SO7

R902014086    A2VK28GEOR1G1PE1-SO10

R909417793    A2VK28OVGR1G00P

R902084059    A2VK28MAOL1G1PE2-SO2

R902014299    A2VK28GEGW1G0PE1-SO

R909442492    A2VK12OVOR4G00P-SO2

R902084061    A2VK12MAOL4G1PE2-SO2

R902018193    A2VK107GEOR1G1PE1-SO4

R909442566    A2VK28OVGR1G00P-SO2

R902084124    A2VK107MAOR1G0PE2-SO2

R902021874    A2VK55OVOR1G00P-SO10

R909442567    A2VK28OVOR1G00P-SO2

R902086544    A2VK12MAOR4G1PE1-SO7

R902021875    A2VK55MAOR1G1PE1-SO10

R909442588    A2VK55OVOR1G00P-SO2

R902086610    A2VK28OVGR1G00P-SO12

R902024706    A2VK28MAOR1G1PE1-SO7

R909442660    A2VK107OVGR1G00P

R902086611    A2VK28GEGR1G0PE1-SO16

R902024707    A2VK28MAOR1G1PE2-SO7

R909442661    A2VK107OVOR1G00P

R902088528    A2VK12GEGR4G0PE1-SO6

R902024765    A2VK12MAOR4G0PE2-SO2

R909446008    A2VK12MAOR4G0PE1-SO3

R902092011    A2VK28MAOR1G0PE1-ESO2

R902024800    A2VK55MAGR1G1PE1-SO10

R909446009    A2VK28MAOR1G0PE1-SO3

R902101233    A2VK28MAOL1G0PE1-SO2

R902024879    A2VK55MAGR1G1PE1

R909446046    A2VK28MAOR1G0PE2-SO3

R909605536    A2VK107MAOR1G0PE2-SO7

R902024881    A2VK55MAGR1G1PE2

R909446351    A2VK28MAOR1G0PE1-SO2

R909604865    A2VK107MAOR1G0PE1-SO

R902027140    A2VK12MAGR4G1PE2-SO2

R909446352    A2VK55MAOR1G0PE1-SO2

R909604891    A2VK28MAGR1G0PE1-SO9

R902027141    A2VK28MAGR1G1PE2-SO2

R909447014    A2VK12MAOR4G0PE2-SO7

R909604892    A2VK28MAGR1G0PE2-SO9

R902028554    A2VK28MAOR1G0PE2-SO2

R909447017    A2VK12MAOR4G0PE1-SO7

R909604911    A2VK28MAOR1G1PE1

R902028557    A2VK107MAOR1G1PE1-SO2

R909447063    A2VK28MAOR1G0PE2-SO7

R909604912    A2VK12MAGR4G0PE2

R902028558    A2VK107MAOR1G1PE2-SO2

R909447064    A2VK28MAOR1G0PE1-SO7

R909604913    A2VK12MAOR4G0PE2

R902031610    A2VK12MAGL4G0PE2

R909447172    A2VK12MAOR4G0PE1-SO2

R909604914    A2VK107MAOR1G1PE2

R902031665    A2VK28MAOL1G0PE1-SO

R909447193    A2VK12MAGR4G0PE1-SO2

R909604952    A2VK12MAOR4G0PE1-SO9

R902033112    A2VK12GEGL4G1PE1-SO

R909447194    A2VK28MAGR1G0PE1-SO2

R909604986    A2VK12MAGR4G0PE2-SO

R902033114    A2VK28GEGR1G0PE1-SO6

R909447290    A2VK55GEOR1G0PE1-SO6

R909604987    A2VK12MAOR4G0PE2-SO

R902034181    A2VK12MAGR4G0PE1-SO11

R909447432    A2VK28GEOR1G0PE1-SO6

R909604988    A2VK28MAGR1G0PE1-SO

R902035132    A2VK12GEGW4G0PE1-SO

R909447718    A2VK12GEOR4G0PE1-SO6

R909604989    A2VK28MAOR1G0PE2-SO

R902035184    A2VK28OVOR1G00P-SO61

R909448100    A2VK12MAGR4G1PE1-SO3

R909605114    A2VK12MAGR4G0PE1-SO9

R902035185    A2VK28GEOR1G0PE1-SO61

R909448595    A2VK107MAOR1G0PE1-SO2

R909605115    A2VK12MAGR4G0PE2-SO9

R902036627    A2VK28OVGW1G00P-SO

R909603350    A2VK12MAOR4G1PE2-SO8

R909605128    A2VK12GEGR4G0PE1-SO

R902036628    A2VK28MAGW1G0PE1-SO

R909603364    A2VK12MAOR4GOPE1-SO8

R909605243    A2VK12MAGR4G0PE1-SO10

R902036692    A2VK12MAGR4G0PE2-SO10

R909603406    A2VK12MAGR4G1PE1-SO8

R909605251    A2VK28OVOR1G0PE-SO9

R902036991    A2VK28MAOL1G0PE2-SO

R909603462    A2VK12MAOR4G1PE1-SO8

R909605252    A2VK28MAOR1G0PE1-SO10

R902038629    A2VK55MAGR1G0PE2-SO2

R909603547    A2VK28MAGR1G0PE1-SO8

R909605307    A2VK12MAOR4G1PE1-SO12

R902042042    A2VK55MAOR1G0PE2-SO2

R909603595    A2VK55MAOR1G0PE2-SO7

R909605308    A2VK12MAOR4G1PE2-SO12

R902043533    A2VK107MAGR1G1PE1-SO

R909603596    A2VK55MAOR1G0PE1-SO7

R909605327    A2VK28OVOR1GPE-SO12

R902043534    A2VK107MAGR1G1PE2-SO

R909603618    A2VK107GEOR1G0PE1-SO6

R909605335    A2VK28MAOR1G0PE1-SO12

R902043851    A2VK55MAGL1G0PE1-SO2

R909603682    A2VK12MAGR4G1PE2-SO8

R909605336    A2VK28MAOR1G1PE2-SO12

R902045259    A2VK12MAGL4G1PE2-SO

R909603727    A2VK28MAOR1G0PE1-SO11

R909605414    A2VK12GEOR4G0PE1-SO

R902047068    A2VK55MAGR1G1PE2-SO2

R909603730    A2VK12MAOR4G0PE1-SO11

R909605415    A2VK28GEOR1G0PE1-SO

R902047230    A2VK12MAGR4G0PE2-SO2

R909603866    A2VK12MAOR4G0PE1-SO12

R909605535    A2VK107MAOR1G0PE1-SO7

R902047231    A2VK12MAGL4G0PE1-SO2

R909604012    A2VK28GEGR1G1PE2-SO5

R902000445    A2VK12GEOR4G0PE2-SO6

R902052254    A2VK28OVGL1G00P-SO2

R909604336    A2VK28MAOR1G1PE1-SO

R902054701    A2VK55OVOL1G00P

R902052255    A2VK28GEGL1G0PE2-SO6

R909604337    A2VK28MAOR1G0PE1

R902054827    A2VK12MAOL4G1PE2-SO

R902052369    A2VK28MAOL1G0PE2-SO2

R909604348    A2VK12MAOR4G1PE1-SO

R902054914    A2VK12OVOL4G00P-SO

R902052370    A2VK28OVOL1G00P-SO2

R909604352    A2VK12MAOR4G1PE2-SO

R902054915    A2VK12MAOL4G0PE2

R902052372    A2VK12MAOL4G0PE2-SO2

R909604353    A2VK12MAOR4G0PE1

R902057442    A2VK55OVOL1G00P-SO

R902052373    A2VK12OVOL4G00P-SO

R909604386    A2VK55MAOR1G0PE2-SO

R902057443    A2VK55MAOL1G0PE2-SO

R902052376    A2VK55OVGL1G00P-SO

R909604387    A2VK55MAOR1G0PE1-SO

R902060108    A2VK12MAOL4G1PE1-SO2

R902052393    A2VK12MAOL4G0PE2-SO

R909604391    A2VK28MAOR1G0PE1-SO

R902060110    A2VK12MAOL4G1PE1-SO

R902052394    A2VK12OVOL4G00P-SO

R909604446    A2VK28MAOR1G1PE2-SO

R902060111    A2VK28OVOL1G00P-SO

R902054201    A2VK12GEGW4G0PE1-SO6

R909604506    A2VK12MAOR4G0PE1-SO

R902060112    A2VK28MAOL1G1PE1-SO

R902054202    A2VK12GW4G0PE-SO

R909604508    A2VK55MAGR1G0PE2

R902060113    A2VK28MAOL1G1PE1-SO2

R902054241    A2VK28MAOL1G0PE2

R909604654    A2VK12MAGR4G1PE1

R902060359    A2VK107GEGR1G0PE1-SO6

R902054242    A2VK28OVOL1G00P

R909604655    A2VK12MAGR4G1PE2

R902063697    A2VK28MAGR1G0PE2-SO2

R902054700    A2VK55MAOL1G0PE2

R909604656    A2VK28MAGR1G1PE1

R902065599    A2VK12GL4G0PE-SO

R909604803    A2VK55GEOR1G1PE2-SO5

R909604657    A2VK28MAGR1G1PE2

R902065600    A2VK12MAGL4G1PE2-SO2

R909604829    A2VK12MAOR4G1PE2

R909604658    A2VK28MAGR1G1PE2-SO

R902065720    A2VK12MAOL4G0PE1-SO

R909604830    A2VK12MAOR4G1PE1

R909604725    A2VK55MAGR1G1PE1-SO

R902065834    A2VK12OVGL4OOP

R909604834    A2VK12MAOR4G0PE1-SO10

R909604726    A2VK55MAGR1G1PE2-SO

R902065835    A2VK12MAGL4G0PE2-SO

R909604836    A2VK28OVGR1G00P-SO10

R909604727    A2VK28GEOR1G1PE2-SO5

R902067593    A2VK28OVGL1G00P-SO

R909604837    A2VK28MAGR1G0PE1-SO10

R909604729    A2VK55MAOR1G1PE1-SO

R902067594    A2VK28MAGL1G0PE2-SO

R909604841    A2VK55OVGR1G00P-SO10

R909604730    A2VK55MAOR1G1PE2-SO

R902067668    A2VK107MA/GE-LINKSLAUF

R909604844    A2VK55MAGR1G0PE1-SO10

R909604755    A2VK12MAOR4G0PE1-SO1

R902067669    A2VK107MAOL1G0PE2-SO

R909604857    A2VK107MAGR1G0PE1-SO2

R909604763    A2VK12MAGR4G0PE1-SO

R902067773    A2VK12GW4G0PE-SO11

R909604864    A2VK107MAOR1G0PE2-SO

R909604764    A2VK12MAGR4G1PE2-SO

R902067774    A2VK12GEGR4G0PE1-SO16

R909604768    A2VK28MAOR1G1PE2-SO8

R909604765    A2VK12MAGR4G0PE1

R902067940    A2VK12 -RECHTSLAUF

R909604769    A2VK28MAOR1G1PE1-SO8

R909604766    A2VK28MAGR1G1PE1-SO

R909604767    A2VK28MAGR1G0PE1
