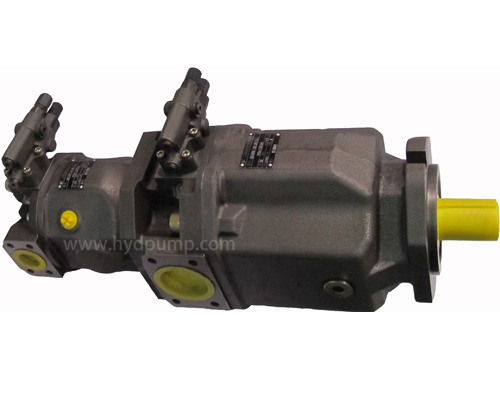

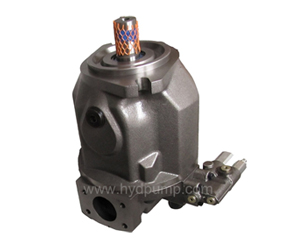

Brueninghaus Hydromatik Rexroth A10VO & A10VSO Pump
Open circuit
Size: 18, 28,45, 71,100, 140
Series: 31
Nominal pressure 280 bar. Peak pressure 350 bar
Series 31 model: A10VO18, A10VO28, A10VO45, A10VO71, A10VO100, A10VO140
Series 32 model: A10VO45, A10VO71, A10VO100, A10VO140, A10VO180
Series 52 & 53 model: A10VO10, A10VO18, A10VO28, A10VO45, A10VO63, A10VO85
Series 31 model: A10VSO18, A10VSO28, A10VSO45, A10VSO71, A10VSO100, A10VSO140 pump
Series 32 model: A10VSO45, A10VSO71, A10VSO100, A10VSO140, A10VSO180 pump
Series 52 & 53 model: A10VSO10, A10VSO18, A10VSO28, A10VSO45, A10VSO63, A10VSO85 pump
Control devices: DR, DRG, DFR, DFR1, DFLR, ED, FHD and EF.
|
|
Features:
– Axial piston pump A10VSO, variable, in swash plate design for hydrostatic transmissions in open loop circuit
– Flow is proportional to drive speed and displacement. By adjusting the swash plate angle it is possible to infinitely vary the flow
– Mounting flange acc. to SAE J744
– Flanged ports acc. to SAE J518
– 2 case drain ports
– Good suction characteristics
– Permissible working pressure 280 bar
– Low noise level
– Long service life
– Axial and radial loading of drive shaft possible
– High power to weight ratio
– Wide range of controls
–Short response times
–Interchangeable with original Rexroth pump of the same model
|
H
|
A10V
|
SO
|
100
|
DR /
|
31
|
R -
|
P
|
P
|
A
|
12
|
N00
|
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
11
|
12
|
|
1= High speed version
2= Variable displacement pump
3= Swash plate design variable, open circuit
SO= industrial pump
O= mobile pump
4= Size: 18, 28, 45, 71, 100, 140
5= Control devices:
DR= pressure control
DRG= remote control
DFR= pressure and flow control
DFR1= orifice in X-channel closed
DFLR= pressure, flow and torque control
6= Series: 31
7= Direction of rotation: R= clockwise, L= anti-clockwise
8= Seals: P=NBR ( Nitrile rubber), V=FKM (Fluoro rubber)
9= Shaft end:
P= Metric parallel key
S= SAE spline
K= SAE parallel key
R= SAE spline through drive
U= SAE spline
|
10= Mounting flange:
A= ISO 2-bolt
B= ISO 4-bolt
C= SAE 2-bolt
D= SAE 4-bolt
11= Port type: 11,12, 41, 42, 61, 62, 91, 92
12= Through drive:
NOO=without through drive
With through drive*:
K01= mounting flange: 82-2(A). Shaft/coupling: 16-4(A)
K52= mounting flange: 82-2(A). Shaft/coupling: 19-4(A-B)
K02= mounting flange: 101-2(B). Shaft/coupling: 22-4(B)
K68= mounting flange: 101-2(B). Shaft/coupling: 22-4(B)
K04= mounting flange: 101-2(B). Shaft/coupling: 25-4(B-B)
K07= mounting flange: 127-2(C). Shaft/coupling: 32-4(C)
K24= mounting flange: 127-2(C). Shaft/coupling: 38-4(C-C)
K17= mounting flange: 152-4(D). Shaft/coupling: 44-4(D)
*Flange acc. to ISO 3019-1. Coupling for splined shaft acc. to SAE J744
|
Technical Data Brueninghaus Hydromatik Rexroth A10VO Pump
Table of values (theoretical values, without efficiency and tolerances; values rounded)
|
Rexroth A10VO
|
Displacement
|
Max Speed [rpm]
|
Flow
|
Weight
|
|
cm 3 /r [ in 3 /r]
|
gpm [L/min]
|
kg [lbs]
|
|
A10VSO28DFR/31
|
28/1.71
|
3600
|
22.2/84
|
15/33
|
|
A10VSO28DFR1/31
|
28/1.71
|
3600
|
22.2/84
|
15/33
|
|
A10VSO28DR/31
|
28/1.71
|
3600
|
22.2/84
|
15/33
|
|
A10VSO28DRG/31
|
28/1.71
|
3600
|
22.2/84
|
15/33
|
|
A10VSO28DFLR/31
|
28/1.71
|
3600
|
22.2/84
|
15/33
|
|
A10VSO28ED/31
|
28/1.71
|
3600
|
22.2/84
|
15/33
|
|
A10VSO28FHD/31
|
28/1.71
|
3600
|
22.2/84
|
15/33
|
|
A10VSO28EF/31
|
28/1.71
|
3600
|
22.2/84
|
15/33
|
|
A10VSO45DFR/31
|
45/2.75
|
3100
|
30.9/117
|
21/46
|
|
A10VSO45DFR1/31
|
45/2.75
|
3100
|
30.9/117
|
21/46
|
|
A10VSO45DR/31
|
45/2.75
|
3100
|
30.9/117
|
21/46
|
|
A10VSO45DRG/31
|
45/2.75
|
3100
|
30.9/117
|
21/46
|
|
A10VSO45DFLR/31
|
45/2.75
|
3100
|
30.9/117
|
21/46
|
|
A10VSO45ED/31
|
45/2.75
|
3100
|
30.9/117
|
21/46
|
|
A10VSO45FHD/31
|
45/2.75
|
3100
|
30.9/117
|
21/46
|
|
A10VSO45EF/31
|
45/2.75
|
3100
|
30.9/117
|
21/46
|
|
A10VSO71DFR/31
|
71/4.33
|
2600
|
41.2/156
|
33/73
|
|
A10VSO71DFR1/31
|
71/4.33
|
2600
|
41.2/156
|
33/73
|
|
A10VSO71DR/31
|
71/4.33
|
2600
|
41.2/156
|
33/73
|
|
A10VSO71DRG/31
|
71/4.33
|
2600
|
41.2/156
|
33/73
|
|
A10VSO71DFLR/31
|
71/4.33
|
2600
|
41.2/156
|
33/73
|
|
A10VSO71ED/31
|
71/4.33
|
2600
|
41.2/156
|
33/73
|
|
A10VSO71FHD/31
|
71/4.33
|
2600
|
41.2/156
|
33/73
|
|
A10VSO71EF/31
|
71/4.33
|
2600
|
41.2/156
|
33/73
|
|
A10VSO100DFR/31
|
100/6.1
|
2400
|
52.8/200
|
45/99
|
|
A10VSO100DFR1/31
|
100/6.1
|
2400
|
52.8/200
|
45/99
|
|
A10VSO100DR/31
|
100/6.1
|
2400
|
52.8/200
|
45/99
|
|
A10VSO100DRG/31
|
100/6.1
|
2400
|
52.8/200
|
45/99
|
|
A10VSO100DFLR/31
|
100/6.1
|
2400
|
52.8/200
|
45/99
|
|
A10VSO100ED/31
|
100/6.1
|
2400
|
52.8/200
|
45/99
|
|
A10VSO100FHD/31
|
100/6.1
|
2400
|
52.8/200
|
45/99
|
|
A10VSO100EF/31
|
100/6.1
|
2400
|
52.8/200
|
45/99
|
|
A10VSO140DFR/31
|
140/8.54
|
2100
|
22.2/84
|
60/132
|
|
A10VSO140DFR1/31
|
140/8.54
|
2100
|
22.2/84
|
60/132
|
|
A10VSO140DR/31
|
140/8.54
|
2100
|
22.2/84
|
60/132
|
|
A10VSO140DRG/31
|
140/8.54
|
2100
|
22.2/84
|
60/132
|
|
A10VSO140DFLR/31
|
140/8.54
|
2100
|
22.2/84
|
60/132
|
|
A10VSO140ED/31
|
140/8.54
|
2100
|
22.2/84
|
60/132
|
|
A10VSO140FHD/31
|
140/8.54
|
2100
|
22.2/84
|
60/132
|
|
A10VSO140EF/31
|
140/8.54
|
2100
|
22.2/84
|
60/132
|
Technical Data Brueninghaus Hydromatik Rexroth A10VO
Rexroth A10VO
|
Displacement
|
Max Speed [rpm]
|
Flow
|
Weight
|
|
cm 3 /r [ in 3 /r]
|
gpm [L/min]
|
kg [lbs]
|
|
A10VO28DFR/31
|
28/1.71
|
3600
|
22.2/84
|
15/33
|
|
A10VO28DFR1/31
|
28/1.71
|
3600
|
22.2/84
|
15/33
|
|
A10VO28DR/31
|
28/1.71
|
3600
|
22.2/84
|
15/33
|
|
A10VO28DRG/31
|
28/1.71
|
3600
|
22.2/84
|
15/33
|
|
A10VO28DFLR/31
|
28/1.71
|
3600
|
22.2/84
|
15/33
|
|
A10VO28ED/31
|
28/1.71
|
3600
|
22.2/84
|
15/33
|
|
A10VO28FHD/31
|
28/1.71
|
3600
|
22.2/84
|
15/33
|
|
A10VO28EF/31
|
28/1.71
|
3600
|
22.2/84
|
15/33
|
|
A10VO45DFR/31
|
45/2.75
|
3100
|
30.9/117
|
21/46
|
|
A10VO45DFR1/31
|
45/2.75
|
3100
|
30.9/117
|
21/46
|
|
A10VO45DR/31
|
45/2.75
|
3100
|
30.9/117
|
21/46
|
|
A10VO45DRG/31
|
45/2.75
|
3100
|
30.9/117
|
21/46
|
|
A10VO45DFLR/31
|
45/2.75
|
3100
|
30.9/117
|
21/46
|
|
A10VO45ED/31
|
45/2.75
|
3100
|
30.9/117
|
21/46
|
|
A10VO45FHD/31
|
45/2.75
|
3100
|
30.9/117
|
21/46
|
|
A10VO45EF/31
|
45/2.75
|
3100
|
30.9/117
|
21/46
|
|
A10VO71DFR/31
|
71/4.33
|
2600
|
41.2/156
|
33/73
|
|
A10VO71DFR1/31
|
71/4.33
|
2600
|
41.2/156
|
33/73
|
|
A10VO71DR/31
|
71/4.33
|
2600
|
41.2/156
|
33/73
|
|
A10VO71DRG/31
|
71/4.33
|
2600
|
41.2/156
|
33/73
|
|
A10VO71DFLR/31
|
71/4.33
|
2600
|
41.2/156
|
33/73
|
|
A10VO71ED/31
|
71/4.33
|
2600
|
41.2/156
|
33/73
|
|
A10VO71FHD/31
|
71/4.33
|
2600
|
41.2/156
|
33/73
|
|
A10VO71EF/31
|
71/4.33
|
2600
|
41.2/156
|
33/73
|
|
A10VO100DFR/31
|
100/6.1
|
2400
|
52.8/200
|
45/99
|
|
A10VO100DFR1/31
|
100/6.1
|
2400
|
52.8/200
|
45/99
|
|
A10VO100DR/31
|
100/6.1
|
2400
|
52.8/200
|
45/99
|
|
A10VO100DRG/31
|
100/6.1
|
2400
|
52.8/200
|
45/99
|
|
A10VO100DFLR/31
|
100/6.1
|
2400
|
52.8/200
|
45/99
|
|
A10VO100ED/31
|
100/6.1
|
2400
|
52.8/200
|
45/99
|
|
A10VO100FHD/31
|
100/6.1
|
2400
|
52.8/200
|
45/99
|
|
A10VO100EF/31
|
100/6.1
|
2400
|
52.8/200
|
45/99
|
|
A10VO140DFR/31
|
140/8.54
|
2100
|
22.2/84
|
60/132
|
|
A10VO140DFR1/31
|
140/8.54
|
2100
|
22.2/84
|
60/132
|
|
A10VO140DR/31
|
140/8.54
|
2100
|
22.2/84
|
60/132
|
|
A10VO140DRG/31
|
140/8.54
|
2100
|
22.2/84
|
60/132
|
|
A10VO140DFLR/31
|
140/8.54
|
2100
|
22.2/84
|
60/132
|
|
A10VO140ED/31
|
140/8.54
|
2100
|
22.2/84
|
60/132
|
|
A10VO140FHD/31
|
140/8.54
|
2100
|
22.2/84
|
60/132
|
|
A10VO140EF/31
|
140/8.54
|
2100
|
22.2/84
|
60/132
|
Fluid
Prior to project design, please see our data sheets RE 90220 (mineral oil ) and RE 90221 (ecologically acceptable fluids) for detailed information on fluids and application conditions. When using ecologically acceptable fluids attention must be paid to possible limitations of the technical data.
Notes on the selection of hydraulic fluid
In order to select the correct fluid, it is necessary to know the operating temperature in the tank (open circuit) in relation to the ambient temperature. The hydraulic fluid should be selected so that within the operating temperature range, the viscosity lies within the optimum range (νopt.); see shaded section of the selection diagram. We recommend that the higher viscosity grade is selected in each case. Example: at an ambient temperature of X°C the operating temperature in the tank is 60 °C. In the optimum viscosity range νopt (shaded area), this corresponds to viscosity grades VG 46 or VG 68, VG 68 should be selected. Important: The leakage oil temperature is influenced by pressure and speed and is typically higher than the tank temperature. However max. temperature at any point in the system may not exceed 115 °C. At high temperatures please use FKM seals.
DG - two point, direct control
The pump can be set to a minimum swivel angle by connecting an external switching pressure to port X. This will supply the control piston directly with control oil; a minimum pressure of 50 bar is required.
DR - Pressure control
The pressure control serves to maintain a constant pressure in the hydraulic system, within the control range of the pump. The pump therefore supplies only the amount of hydraulic fluid required by the actuators. Pressure can be steplessly set at the pilot valve.
DRG - Pressure control, remote
A pressure relief valve may be externally piped to port X for remote control purposes. However it is not included in the scope of supply with the DRG control. The differential pressure at the DRG control spool is set as standard to 20 bar and this results in a pilot flow of 1,5 L/min. If another setting is required, please state this in clear text.
DFR/DFR1-Pressure-flow control
In addition to the pressure control function, the pump flow to the actuator may be varied by means of a differential pressure (eg. over an orifice or directional control valve). The pump supplies only the amount of fluid as required by the actuator. In the DFR1-valve
DFLR - Pressure/flow/power control
In order to achieve a constant drive torque with a varying operating pressure, the swivel angle and with it the output flow from the axial piston unit is varied so that the product of flow and pressure remains constant.
FHD - Displacement control, pilot pressure dependent, with pressure control
The swivel angle of the pump, and hence the displacement or flow, is dependent on the pilot pressure pSt X in port X.
A constant pressure py = 35 bar is required at port Y. An overriding pressure control is integrated, and can be steplessly set at the control valve.
|
Details Rexroth A10VSO pump
|
|
R910903160 A10VSO28DFR/31R-PPA12N00
|
R910936912 A10VSO45DFLR/31R-PPA12N00
|
|
R910903163 A10VSO28DR/31R-PPA12N00
|
R910938804 A10VSO18DFR1/31R-PUC62N00
|
|
R910907403 A10VSO45DR/31R-PPA12N00
|
R910938977 A10VSO140DFLR/31R-PPB12N00
|
|
R910907919 A10VSO28DR/31R-PPA12K01
|
R910939026 A10VSO28DFLR/31R-PPA12N00
|
|
R910908725 A10VSO45DFR1/31R-PPA12N00
|
R910939183 A10VSO45DFR/31R-PPA12N00
|
|
R910909613 A10VSO45DFR/31R-PPA12K01
|
R910939192 A10VSO140DFR/31R-PPB12N00
|
|
R910910590 A10VSO28DFR1/31R-PPA12N00
|
R910939643 A10VSO100DFR/31R-PPA12N00
|
|
R910911010 A10VSO45DFR/31R-PPA12K26
|
R910940520 A10VSO18DFR/31R-PPA12N00
|
|
R910912007 A10VSO100DR/31R-PPA12N00
|
R910940582 A10VSO45DFLR/31R-PPA12N00
|
|
R910921546 A10VSO140DFR1/31R-PPB12N00
|
R910940936 A10VSO28DFLR/31R-PPA12N00
|
|
R910922744 A10VSO100DFR1/31R-PPA12N00
|
R910941109 A10VSO140DFLR/31R-PPB12N00
|
|
R910922983 A10VSO140DR/31R-PPB12N00
|
R910942503 A10VSO18DR/31R-PPA12N00
|
|
R910926318 A10VSO28DFR1/31R-PPA12K01
|
R910942635 A10VSO71DFR/31R-PPA12N00
|
|
R910927068 A10VSO45DFR1/31R-PPA12K02
|
R910942654 A10VSO71DFLR/31R-PPA12N00
|
|
R910927083 A10VSO100DFR1/31R-PPA12K02
|
R910943468 A10VSO100DFLR/31R-PPA12N00
|
|
R910927126 A10VSO140DFR1/31R-PPB12K02
|
R910943841 A10VSO140DFLR/31R-PPB12N00
|
|
R910932852 A10VSO140DRG/31R-PPB12N00
|
R910944032 A10VSO100DFLR/31R-PPA12N00
|
|
R910934823 A10VSO100DFLR/31R-PPA12N00
|
R910944067 A10VSO71DFLR/31R-PPA12N00
|
|
R910935974 A10VSO140DFLR/31R-PPB12N00
|
R910944440 A10VSO71DFR1/31R-PPA12N00
|
|
R910935975 A10VSO45DFLR/31R-PPA12N00
|
R910944502 A10VSO71DFLR/31R-PPA12N00
|
|
R910936059 A10VSO28DFLR/31R-PPA12N00
|
R910944730 A10VSO71DFLR/31R-PPA12N00
|
|
R910936062 A10VSO28DFLR/31R-PPA12N00
|
R910945133 A10VSO71DR/31R-PPA12N00
|
|
R910936094 A10VSO140DFLR/31R-PPB12N00
|
R910945178 A10VSO18DFR1/31R-PPA12N00
|
|
R910936130 A10VSO28DFLR/31R-PPA12N00
|
R910947666 A10VSO18DFR/31L-PSC62N00
|
|
R910936207 A10VSO100DFLR/31R-PPA12N00
|
R910947872 A10VSO71DFR1/31R-PPA12K02
|
|
R910936473 A10VSO100DFLR/31R-PPA12N00
|
R910948654 A10VSO71DFLR/31R-PPA12N00
|
|
R910936738 A10VSO100DFLR/31R-PPA12N00
|
R910948790 A10VSO71DFLR/31R-PPA12N00
|
|
R910936739 A10VSO45DFLR/31R-PPA12N00
|
R910961216 A10VSO71DFLR/31R-PPA12N00
|
|
R910936790 A10VSO100DFLR/31R-PPA12N00
|
R910988126 A10VSO10DR/52R-PKC64N00
|
|
R910936910 A10VSO45DFLR/31R-PPA12N00
|
R910988128 A10VSO10DFR1/52R-PKC64N00
|
|
R910990987 A10VSO10DFR1/52R-PPA14N00
|
R910990406 A10VSO10DR/52R-PPA14N00
|
|
Details model list of Rexroth A10VO pump
|
|
R910919708
|
A10V0100DFR/31L-PSC61N00
|
R902400288
|
A10VO60DFR/52R-PSD62N00
|
R910987271
|
A10VO28DFR1/52L-PSC64N00
|
|
R910921190
|
A10VO100DFR/31L-PSC62K01
|
R910987326
|
A10VO60DFR1/52L-PSC61N00
|
R902401497
|
A10VO28DFR1/52R-PRC62K68
|
|
R910911006
|
A10VO100DFR/31L-PSC62K02
|
R902426557
|
A10VO60DFR1/52L-PSC62N00
|
R910978473
|
A10VO28DFR1/52R-PSC61N00
|
|
R910907323
|
A10VO100DFR/31L-PSC62N00
|
R910976294
|
A10VO60DFR1/52L-PSD61N00
|
R902400303
|
A10VO28DFR1/52R-PSC62N00
|
|
R910920979
|
A10VO100DFR/31R-PSC61N00
|
R910978418
|
A10VO60DFR1/52L-PSD62N00
|
R910979350
|
A10VO28DFR1/52R-PSC64N00
|
|
R910917244
|
A10VO100DFR/31R-PSC62K01
|
R910990159
|
A10VO60DRF1/52R-PSC61N00
|
R910908605
|
A10VO28DR/31L-PSC61N00
|
|
R910911970
|
A10VO100DFR/31R-PSC62K02
|
R902405137
|
A10VO60DFR1/52R-PSC62N00
|
R910911830
|
A10VO28DR/31L-PSC62K01
|
|
R910906900
|
A10VO100DFR/31R-PSC62N00
|
R910974886
|
A10VO60DFR1/52R-PSD61N00
|
R910909460
|
A10VO28DR/31L-PSC62N00
|
|
R910924428
|
A10VO100DFR1/31L-PSC61N00
|
R910984482
|
A10VO60DFR1/52R-PSD62N00
|
R910912013
|
A10VO28DR/31R-PSC61N00
|
|
R910968458
|
A10VO100DFR1/31L-PSC62K01
|
R910990125
|
A10VO60DR/52L-PSC61N00
|
R910915421
|
A10VO28DR/31R-PSC62K01
|
|
R910930665
|
A10VO100DFR1/31L-PSC62K02
|
R902406014
|
A10VO60DR/52L-PSC62N00
|
R910913825
|
A10VO28DR/31R-PSC62K02
|
|
R910940045
|
A10VO100DFR1/31L-PSC62N00
|
R910990624
|
A10VO60DR/52L-PSD61N00
|
R910909159
|
A10VO28DR/31R-PSC62N00
|
|
R910940560
|
A10VO100DFR1/31R-PSC61N00
|
R902406017
|
A10VO60DR/52L-PSD62N00
|
R902401498
|
A10VO28DR/52L-PRC62K68
|
|
R910911023
|
A10VO100DFR1/31R-PSC62K01
|
R902406015
|
A10VO60DR/52R-PSC61N00
|
R902401499
|
A10VO28DR/52L-PSC61N00
|
|
R910929630
|
A10VO100DFR1/31R-PSC62K02
|
R902406016
|
A10VO60DR/52R-PSC62N00
|
R902426043
|
A10VO28DR/52L-PSC62N00
|
|
R910910567
|
A10VO100DFR1/3R-PSC62N00
|
R902406018
|
A10VO60DR/52R-PSD61N00
|
R910993045
|
A10VO28DR/52L-PSC64N00
|
|
R902430848
|
A10VO100DR/31L-PSC61N00
|
R902406019
|
A10VO60DR/52R-PSD62N00
|
R902406028
|
A10VO28DR/52R-PRC62K68
|
|
R902500502
|
A10VO100DR/31L-PSC62K01
|
R902400410
|
A10VO71DFR1/31L-PSC91N00
|
R910984372
|
A10VO28DR/52R-PSC61N00
|
|
R910923450
|
A10VO100DR/31L-PSC62K02
|
R902401171
|
A10VO71DFR1/31L-PSC92K01
|
R902401461
|
A10VO28DR/52R-PSC62N00
|
|
R910913633
|
A10VO100DR/31L-PSC62N00
|
R902400327
|
A10VO71DFR1/31L-PSC92K02
|
R910983084
|
A10VO28DR/52R-PSC64N00
|
|
R910936662
|
A10VO100DR/31R-PSC61N00
|
R902400273
|
A10VO71DFR1/31L-PSC92N00
|
R910440080
|
A10VO28DRG/31L-PSC61N00
|
|
R910931051
|
A10VO100DR/31R/31R-PSC62K01
|
R902401010
|
A10VO71DFR1/31R-PSC91N00
|
R910929576
|
A10VO28DRG/31L-PSC62K01
|
|
R910916623
|
A10VO100DR/31R-PSC62K02
|
R902401216
|
A10VO71DFR1/31R-PSC92K01
|
R910931935
|
A10VO28DRG/31L-PSC62K02
|
|
R910912430
|
A10VO100DR/31R-PSC62N00
|
R902400254
|
A10VO71DFR1/31R-PSC92K02
|
R910941110
|
A10VO28DRG/31L-PSC62N00
|
|
R910941500
|
A10VO100DRG/31L-PSC61N00
|
R902400307
|
A10VO71DFR1/31R-PSC92N00
|
R910966020
|
A10VO28DRG/31R-PSC61N00
|
|
R902500501
|
A10VO100DRG/31L-PSC62K01
|
R902400029
|
A10VO71DFR/31L-PSC91N00
|
R910929962
|
A10VO28DRG/31R-PSC62K01
|
|
R910996193
|
A10VO100DRG/31L-PSC62K02
|
R902401025
|
A10VO71DFR/31L-PSC92K01
|
R910944997
|
A10VO28DRG/31R-PSC62K02
|
|
R910928371
|
A10VO100DRG/31L-PSC62N00
|
R902406040
|
A10VO71DFR/31L-PSC92K02
|
R910928418
|
A10VO28DRG/31R-PSC62N00
|
|
R910992958
|
A10VO100DRG/31R-PSC61N00
|
R902400426
|
A10VO71DFR/31L-PSC92N00
|
R902406000
|
A10VO28DRG/52L-PRC62K68
|
|
R902500500
|
A10VO100DRG/31R-PSC62K01
|
R910990742
|
A10VO71DFR/31R-PSC91N00
|
R902402509
|
A10VO28DRG/52L-PSC61N00
|
|
R910996652
|
A10VO100DRG/31R-PSC62K02
|
R902401176
|
A10VO71DFR/31R-PSC92K01
|
R902406001
|
A10VO28DRG/52L-PSC62N00
|
|
R910932441
|
A10VO100DRG/31R-PSC62N00
|
R902400063
|
A10VO71DFR/31R-PSC92K02
|
R902500327
|
A10VO28DRG/52L-PSC64N00
|
|
R910960372
|
A10VO140DFR/31L-PSD61N00
|
R902400494
|
A10VO71DFR/31R-PSC92N00
|
R902240002
|
A10VO28DRG/52R-PRC62K68
|
|
R910964089
|
A10VO140DFR/31L-PSD62K01
|
R902401066
|
A10VO71DR/31L-PSC91N00
|
R910976584
|
A10VO28DRG/52R-PSC61N00
|
|
R910984805
|
A10VO140DFR/31L-PSD62K02
|
R902401008
|
A10VO71DR/31L-PSC92K01
|
R902406003
|
A10VO28DRG/52R-PSC62N00
|
|
R910924186
|
A10VO140DFR/31L-PSD62N00
|
R902401181
|
A10VO71DR/31L-PSC92K02
|
R910976766
|
A10VO28DRG/52R-PSC64N00
|
|
R902415491
|
A10VO140DFR/31R-PSD51N00
|
R902406039
|
A10VO71DR/31L-PSC92N00
|
R910940366
|
A10VO45DFR/31L-PSC61N00
|
|
R910925779
|
A10VO140DFR/31R-PSD62K01
|
R902401160
|
A10VO71DR/31R-PSC91N00
|
R910909949
|
A10VO45DFR/31L-PSC62K01
|
|
R910924316
|
A10VO140DFR/31R-PSD62K02
|
R902406038
|
A10VO71DR/31R-PSC92K01
|
R910910030
|
A10VO45DFR/31L-PSC62K02
|
|
R910921425
|
A10VO140DFR/31R-PSD62N00
|
R902401092
|
A10VO71DR/31R-PSC92K02
|
R910908124
|
A10VO45DFR/31L-PSC62N00
|
|
R910932228
|
A10VO140DFR1/31L-PSD61N00
|
R902400350
|
A10VO71DR/31R-PSC92N00
|
R910905696
|
A10VO45DFR/31R-PSC61N00
|
|
R902500508
|
A10VO140DFR1/31L-PSD62K01
|
R902400293
|
A10VO71DRG/31L-PSC91N00
|
R910907404
|
A10VO45DFR/31R-PSC62K01
|
|
R910966882
|
A10VO140DFR1/31L-PSD62K02
|
R902401486
|
A10VO71DRG/31L-PSC92K01
|
R910908888
|
A10VO45DFR/31R-PSC62K02
|
|
R910920257
|
A10VO140DFR1/31L-PSD62N00
|
R902406037
|
A10VO71DRG/31L-PSC92K02
|
R910436655
|
A10VO45DFR/31R-PSC62N00
|
|
R910936425
|
A10VO140DFR1/31R-PSD61N00
|
R902401155
|
A10VO71DRG/31L-PSC92N00
|
R902401053
|
A10VO45DFR/52L-PRC62K04
|
|
R910990953
|
A10VO140DFR1/31R-PSD62K01
|
R902401308
|
A10VO71DRG/31R-PSC91N00
|
R910975255
|
A10VO45DFR/52L-PSC61N00
|
|
R910940948
|
A10VO140DFR1/31R-PSD62K02
|
R902401138
|
A10VO71DRG/31R-PSC92K01
|
R902403845
|
A10VO45DFR/52L-PSC62N00
|
|
R910920255
|
A10VO140DFR1/31R-PSD62N00
|
R902401249
|
A10VO71DRG/31R-PSC92K02
|
R910972815
|
A10VO45DFR/52L-PSC64N00
|
|
R910967481
|
A10VO140DR/31L-PSD61N00
|
R902401115
|
A10VO71DRG/31R-PSC92N00
|
R902406004
|
A10VO45DFR/52R-PRC62K04
|
|
R902500507
|
A10VO140DR/31L-PSD62K01
|
R902406224
|
A10VSO10DFR/52R-PKC64N00
|
R910990157
|
A10VO45DFR/52R-PSC61N00
|
|
R902500506
|
A10VO140DR/31L-PSD62K02
|
R902438335
|
A10VSO10DR/52R-PKC64N00
|
R902400300
|
A10VO45DFR/52R-PSC62N00
|
|
R910944605
|
A10VO140DR/31L-PSD62N00
|
R902433002
|
A10VSO10DR/52R-VKC64N00
|
R910970014
|
A10VO45DFR/52R-PSC64N00
|
|
R910967484
|
A10VO140DR/31R-PSD61N00
|
R902406235
|
A10VSO10DRG/52R-PKC64N00
|
R910914939
|
A10VO45DFR1/31L-PSC61N00
|
|
R910995070
|
A10VO140DR/31R-PSD62K01
|
R902500157
|
A10VSO18DFR/31L-PSC62K01
|
R910916472
|
A10VO45DFR1/31L-PSC62K01
|
|
R910947689
|
A10VO140DR/31 R-PSD62K02
|
R910947666
|
A10VSO18DFR/31L-PSC62N00
|
R910932495
|
A10VO45DFR1/31L-PSC62K02
|
|
R910926346
|
A10VO140DR/31R-PSD62N00
|
R910947413
|
A10VSO18DFR/31R-PKC62K01
|
R910909288
|
A10VO45DFR1/31L-PSC62N00
|
|
R902500111
|
A10VO140DRG/31L-PSD61N00
|
R910937515
|
A10VSO18DFR/31R-PKC62K40
|
R910943343
|
A10VO45DFR1/31R-PSC61N00
|
|
R910932966
|
A10VO140DRG/31L-PSD62K01
|
R910946934
|
A10VSO18DFR/31R-PKC62N00
|
R910916931
|
A10VO45DFR1/31R-PSC62K01
|
|
R902500505
|
A10VO140DRG/31L-PSD62K02
|
R910974677
|
A10VSO18DFR/31R-PSC62K01
|
R910920557
|
A10VO45DFR1/31R-PSC62K02
|
|
R902500159
|
A10VO140DRG/31L-PSD62N00
|
R910946939
|
A10VSO18DFR/31R-PSC62N00
|
R910910181
|
A10VO45DFR1/31R-PSC62N00
|
|
R902500504
|
A10VO140DRG/31R-PSD61N00
|
R910974032
|
A10VSO18DFR1/31L-PSC62K01
|
R902400475
|
A10VO45DFR1/52L-PRC62K04
|
|
R902500503
|
A10VO140DRG/31R-PSD62K01
|
R910946936
|
A10VSO18DFR1/31L-PSC62N00
|
R910983571
|
A10VO45DFR1/52L-PSC61N00
|
|
R902404174
|
A10VO140DRG/31R-PSD62K02
|
R910945527
|
A10VSO18DFR1/31R-PSC62K01
|
R902400341
|
A10VO45DFR1/52L-PSC62N00
|
|
R910945836
|
A10VO140DRG/31R-PSD62N00
|
R910947182
|
A10VSO18DFR1/31R-PSC62N00
|
R910966170
|
A10VO45DFR1/52L-PSC64N00
|
|
R910910330
|
A10VO28DFR/31L-PSC61N00
|
R902406033
|
A10VSO18DR/31L-PSC62K01
|
R902406005
|
A10VO45DFR1/52R-PRC62K04
|
|
R910910039
|
A10VO28DFR/31L-PSC62K01
|
R910961895
|
A10VSO18DR/31L-PSC62N00
|
R910975491
|
A10VO45DFR1/52R-PSC61N00
|
|
R910908653
|
A10VO28DFR/31L-PSC62K02
|
R910983980
|
A10VSO18DR/31R-PKC62K01
|
R910985626
|
A10VO45DFR1/52R-PSC62N00
|
|
R910940787
|
A10VO28DFR/31L-PSC62N00
|
R910940516
|
A10VSO18DR/31R-PKC62N00
|
R910966718
|
A10VO45DFR1/52R-PSC64N00
|
|
R910907114
|
A10VO28DFR/31R-PSC61N00
|
R910960393
|
A10VSO18DR/31R-PSC62K01
|
R910910311
|
A10VO45DR/31L-PSC61N00
|
|
R910908655
|
A10VO28DFR/31R-PSC62K01
|
R910948645
|
A10VSO18DR/31R-PSC62N00
|
R910917466
|
A10VO45DR/31L-PSC62K01
|
|
R910908889
|
A10VO28DFR/31R-PSC62K02
|
R902406030
|
A10VSO18DRG/31L-PSC62K01
|
R910911223
|
A10VO45DR/31L-PSC62K02
|
|
R910907402
|
A10VO28DFR/31R-PSC62N00
|
R902406025
|
A10VSO18DRG/31L-PSC62N00
|
R910909446
|
A10VO45DR/31L-PSC62N00
|
|
R910991152
|
A10VO28DFR/52L-PRC62K68
|
R910987771
|
A10VSO18DRG/31R-PKC62K01
|
R910910995
|
A10VO45DR/31R-PSC61N00
|
|
R910976285
|
A10VO28DFR/52L-PSC61N00
|
R902500108
|
A10VSO18DRG/31R-PKC62K40
|
R910910044
|
A10VO45DR/31R-PSC62K01
|
|
R902500457
|
A10VO28DFR/52L-PSC62N00
|
R910944906
|
A10VSO18DRG/31R-PKC62N00
|
R910915423
|
A10VO45DR/31R-PSC62K02
|
|
R910976772
|
A10VO28DFR/52L-PSC64N00
|
R910969812
|
A10VSO18DRG/31R-PSC62K01
|
R910909824
|
A10VO45DR/31R-PSC62K00
|
|
R902401495
|
A10VO28DFR/52R-PRC62K68
|
R910948142
|
A10VSO18DRG/31R-PSC62N00
|
R902406006
|
A10VO45DR/52L-PRC62K04
|
|
R910976487
|
A10VO28DFR/52R-PSC61N00
|
R902406224
|
A10VSO10DFR/52R-PKC64N00E
|
R902406007
|
A10VO45DR/52L-PSC61N00
|
|
R910992465
|
A10VO28DFR/52R-PSC62N00
|
R902438335
|
A10VSO10DR/52R-PKC64N00E
|
R902400311
|
A10VO45DR/52L-PSC62N00
|
|
R910976769
|
A10VO28DFR/52R-PSC64N00
|
R910947413
|
A10VSO18DFR/31R-PKC62K01
|
R910984529
|
A10VO45DR/52L-PSC64N00
|
|
R910910556
|
A10VO28DFR1/31L-PSC61N00
|
R910937515
|
A10VSO18DFR/31R-PKC62K40
|
R920406008
|
A10VO45DR/52R-PRC62K04
|
|
R910922947
|
A10VO28DFR1/31L-PSC62K01
|
R910983980
|
A10VSO18DR/31R-PKC62K01
|
R902406009
|
A10VO45DR/52R-PSC61N00
|
|
R910910625
|
A10VO28DFR1/31L-PSC62K02
|
R910988658
|
A10VSO18DR/31R-PKC62K40
|
R902426054
|
A10VO45DR/52R-PSC62N00
|
|
R910910568
|
A10VO28DFR1/31L-PSC62N00
|
R910940516
|
A10VSO18DR/31R-PKC62N00
|
R902400322
|
A10VO45DR/52R-PSC64N00
|
|
R910911737
|
A10VO28DFR1/31R-PSC61N00
|
R910987771
|
A10VSO18DFG/31R-PKC62K01
|
R910939170
|
A10VO45DRG/31L-PSC61N00
|
|
R910923181
|
A10VO28DFR1/31R-PSC62K01
|
R902500108
|
A10VSO18DFG/31R-PKC62K40
|
R910940745
|
A10VO45DRG/31L-PSC62K01
|
|
R910920960
|
A10VO28DFR1/31R-PSC62K02
|
R910944906
|
A10VSO18DFG/31R-PKC62N00
|
R902401005
|
A10VO45DRG/31L-PSC62K02
|
|
R910942696
|
A10VO28DFR1/31R-PSC62N00
|
R902406224
|
A10VSO10DFR/52R-PKC64N00E
|
R910927101
|
A10VO45DRG/31L-PSC62N00
|
|
R902401496
|
A10VO28DFR1/52L-PRC62K68
|
R902438335
|
A10VSO10DR/52R-PKC64N00E
|
R910946866
|
A10VO45DRG/31R-PSC61N00
|
|
R910986799
|
A10VO28DFR1/52L-PSC61N00
|
R902433002
|
A10VSO10DR/52R-VKC64N00S
|
R910940008
|
A10VO45DRG/31R-PSC62K01
|
|
R910992837
|
A10VO28DFR1/52L-PSC62N00
|
R902406012
|
A10VO45DRG/52R-PRC62K04
|
R910965232
|
A10VO45DRG/31R-PSC62K02
|
|
R910992210
|
A10VO60DFR/52L-PSC61N00
|
R910983637
|
A10VO45DRG/52R-PSC61N00
|
R910919978
|
A10VO45DRG/31R-PSC62N00
|
|
R910990809
|
A10VO60DFR/52L-PSC62N00
|
R902406013
|
A10VO45DRG/52R-PSC62N00
|
R902406010
|
A10VO45DRG/52L-PRC62K04
|
|
R910979367
|
A10VO60DFR/52L-PSD61N00
|
R902400271
|
A10VO45DRG/52R-PSC62N00
|
R910975616
|
A10VO45DRG/52L-PSC61N00
|
|
R910997186
|
A10VO60DFR/52L-PSD62N00
|
R910990988
|
A10VO60DFR/52R-PSC62N00
|
R902401404
|
A10VO45DRG/52L-PSC62N00
|
|
R910988141
|
A10VO60DFR/52R-PSC61N00
|
R910979368
|
A10VO60DFR/52R-PSD61N00
|
R902406011
|
A10VO45DRG/52L-PSC64N00
|
