Eaton Vickers PVB & PFB Axial Piston Pump |

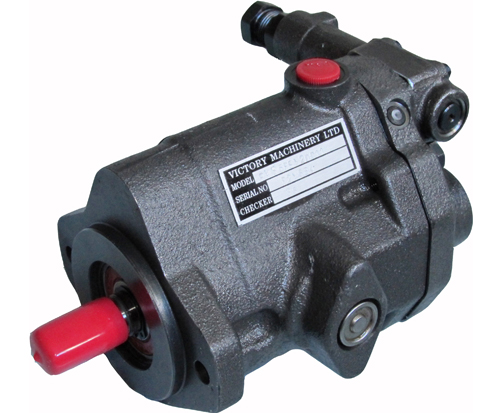

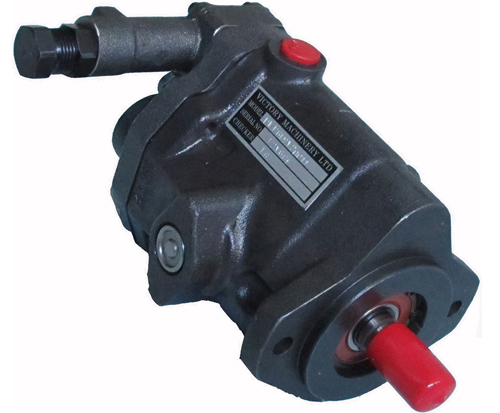

Hydraulic Axial Piston Eaton Vickers PVB Pump
Model: PVB5, PVB6, PVB10, PVB15, PVB20, PVB29, PVB45, PVB90
Variable displacement models make up this range of axial piston pumps. Their high performance ratings and efficiencies are achieved with a variety of hydraulic fluids. PVB pump models can closely match pressure and/or flow demand with a control selected from:
– Pressure compensator with or without a remote control facility.
– Pressure compensator with adjustable displacement control.
– Load sensing compensator.
– Mechanical (lever) control.
– Hand wheel control
Technical Data of Eaton Vickers PVB pump
Table of values (theoretical values, without efficiency and tolerances; values rounded)
PVB pump
|
Max. displacement
|
Output flow
|
Speed
|
Max. pressure
|
Input KW [hp]
|
|
cm3/r [ in3/rev]
|
LPM [gpm] @rpm
|
rpm
|
Bar [psi]
|
@high pressure & speed
|
|
Vickers PVB5
|
10,55[.64]
|
18,9[5]
|
1800
|
210[3000]
|
13,0[17.5]
|
|
Vickers PVB6
|
13,81[.084]
|
22,7[6]
|
1800
|
140[2000]
|
26,1[35]
|
|
Vickers PVB10
|
21,1[1.29]
|
37,5[10.0]
|
1800
|
210[3000]
|
29,4[39.5]
|
|
Vickers PVB15
|
33,0[2.01]
|
59,4[15.7]
|
1800
|
141[2000]
|
29,4[39.5]
|
|
Vickers PVB20
|
42,80[2.61]
|
75,7[20.0]
|
1800
|
210[3000]
|
29,4[39.5]
|
|
Vickers PVB29
|
61,6[3.76]
|
109,7[29]
|
1800
|
140[2000]
|
29,4[39.5]
|
|
Vickers PVB45
|
94,5[5.76]
|
170,3[45.0]
|
1800
|
210[3000]
|
29,4[39.5]
|
|
Vickers PVB90
|
197,5[12.0]
|
348[91.9]
|
1800
|
210[3000]
|
29,4[39.5]
|
Control Data
“C” and “CM” Pressure Compensators: Automatically adjusts pump delivery at pre-adjusted pressure to match system demand. Delivery can decrease rapidly from maximum to zero through a pressure gradient typically 4 to 6 bar (60 to 90 psi) with normal circuit volumes.
“CC” and “CMC” Pressure Compensators with Adjustable Max Displacement Stop: The pressure compensator section performs as described above. The adjustable stop allows the maximum pump delivery to be adjusted between 25 to 100%. To assist priming, adjust the stop setting to provide at least 40% of the maximum displacement.
“CG” Pressure Compensator Remotely Controlled: Same as the “C” compensator, but arranged for remote pressure adjustment by suitable pilot controls. One or more pilot relief valves (e.g. C-175-*) and/or pilot directional valves, in series or in parallel, can provide many varied remote pilot systems.
“CV” Load Sensing Compensator Remotely Controlled: Automatically matches pump delivery to system demand at a pressure approximately 17 bar (250 psi) above load pressure. This pressure difference can be created by: – a variable flow restrictor (non-compensated flow control) or the spool opening of a directional control valve.
“H” Hand wheel Control: Provides manual variation or selection of pump delivery. The control can be operated on both sides of center permitting bi-directional flow characteristics. Approximate change of displacement per one turn of hand wheel is:
PVB5 . . . . . . . . …... . . 2, 6 cm3 (0.16 in3)
PVB6 . . .. . . . . . … . . . 3, 4 cm3 (0.21 in3)
PVB10 . . . . . . …. . . . . 5, 2 cm3 (0.32 in3)
PVB15 . . . . . . . .. . . . . 8, 2 cm3 (0.5 in3)
“M” Lever Control: Provides mechanical or manual variation of pump delivery in approximate proportion to the angular movement from the center position. This control may be operated on both sides of center permitting bi-directional flow characteristics. Control torques (approx. at 1500 r/min).
PVB5 . . . . . . . . . . . . 3, 8 Nm @ 210 bar (33 lbf in at 3000 psi)
PVB6 . . . . . . . . . . . . 2, 7 Nm @ 138 bar (24 lbf in at 2000 psi)
PVB10 and PVB15. . 7, 5 Nm @ 70 bar (66 lbf in at 1000 psi)
“GE1” Minimum Displacement Control: Option for C(M)(C) and CG(C) compensators to limit the minimum displacement, in the fully compensated mode, to nominally 10% of full displacement.
Hydraulic Fluids
All pumps can be used with anti-wear hydraulic oils, water glycols and water-in-oil (invert) emulsions. It is possible to use these pumps with high water base fluids (e.g. 5%/95% oil-in-water emulsion) at pressures up to 70 bar (1000 psi). However, first consult your Vickers representative. The extreme operating viscosity range is from 220 to 13 cSt (1020 to70 SUS) for all pumps (except where 5%/95% emulsions are used). The recommended running range is 54 to 13 cSt. (245 to 70 SUS) The viscosity of 5%/95% emulsions is near-constant at about 1 or 2 cSt (<35 SUS).
|
